Traditional power strips are an affordable way to expand the number of electrical outlets in your home. But their convenience can encourage you to leave electronics plugged in all the time -- and many devices keep drawing power even when you're not using them. Printers, DVD players, computers and plasma TVs are all examples of products with standby modes that make them convenient to use but suck significant power on the sly. This so-called phantom power drain costs you money, wastes electricity and ups your carbon output to boot.
Smart power strips, on the other hand, work to reduce your power usage by shutting down power to products that go into standby mode. Doing so may save you some serious cash.
Daily we have to switch on/off appliances one by one.
Even sometimes we need to walk upstairs just to switch off fan or any device.
And just think when you're away from home.
Now, with Smart Power Strip, you can wirelessly switch them off in seconds.
Warning: This project includes working around high voltage up to 230V and current up to 5A. Electricity is dangerous, so please be careful! You must have knowledge of electricity or electrical wiring, otherwise attempting this project under the supervision of electrical expert. I will not be responsible for any damage caused.
We need to setup Arduino IDE to program NodeMCU 12E v1.0 ESP8266 development board for this to follow the tutorial linked below.
YouTube Video tutorial:
Or use this step-by-step guide on Hackster link: Here. Once you are done, then you should be getting NodeMCU 1.0 board listed under Boards list in Tools section as below:
Also you need the library to connect ESP8266 to Cayenne cloud. For this follow below steps:
- Download this library as a zip file here.
- Install the downloaded zip library from Sketch -> Include Library -> Add .ZIP Library.
- Connect your ESP8266 module to your computer using a USB to Serial FTDI or console cable.
- Select your ESP8266 module and port from the Tools menu.

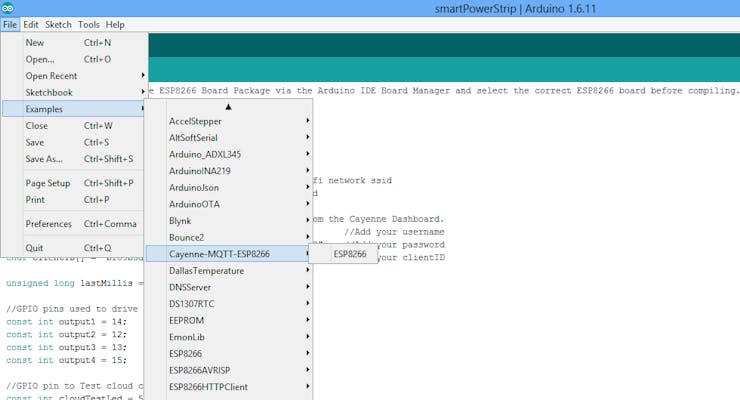

Once you are done, then you will find the example sketch for Cayenne-MQTT-ESP8266 in File -> Example -> section as below:
Visit on https://mydevices.com/ and sign up for to create account on Cayenne Cloud.
Once that's done, log in to your account. Follow the below steps to connect ESP8266 Device on cloud:

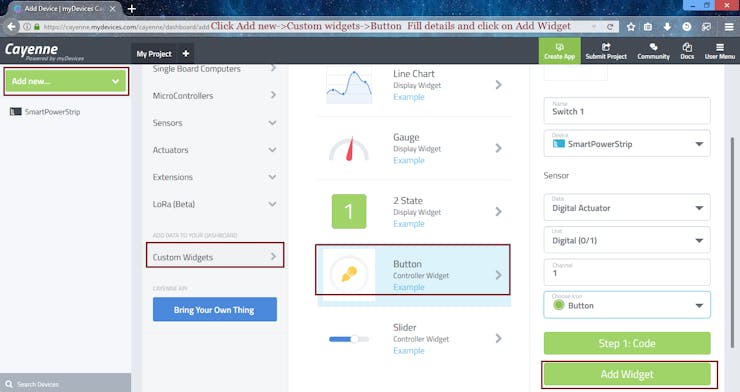

After this we need to add switch widgets to control appliances. I am going to control 4 appliances with my power strip, so adding 4 button switches and one more for testing. Below are screenshots showing how to add them.
Now, we are ready to move on to the hardware section.

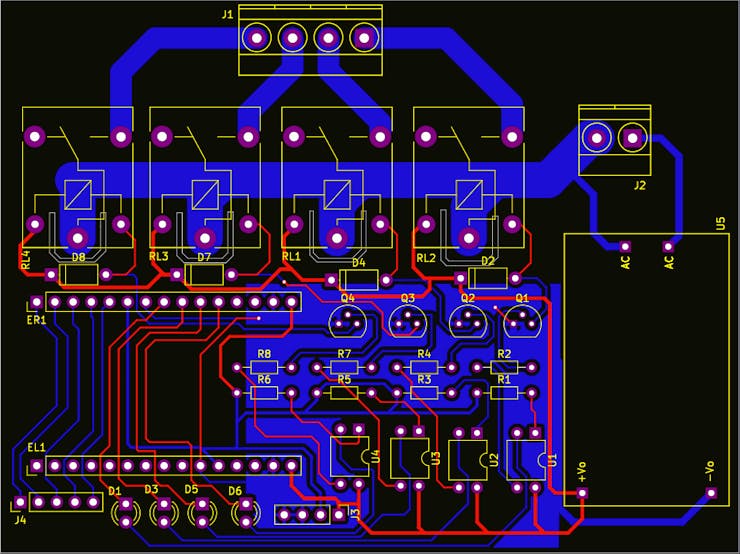

I have designed my first version of a two layer PCB for project. I have used KiCad software to design PCB; it is free without restriction on the number of layers, as well as board size of PCB design.
Youtube Tutorial on KiCad PCB Design:

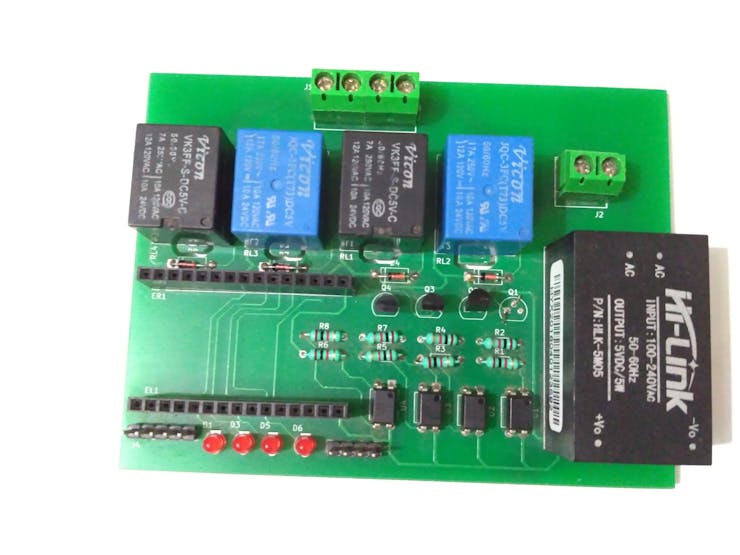

Once done with soldering the components, we can start testing our board.
You can find some breakout pins (GPIOs and supply pins) on left on the board for connecting extra module or testing purpose.
Using the blue LED to test if the device is connected to the cloud.
Now upload the code available in the code section SmartPowerStrip.ino file.
You can see that once device is connected to the cloud, the blue LED will blink and will remain on. At any time you can send test commands from the cloud by pressing TestLED button widget. If received successfully, then it will blink.
And to check if the relay is working before the actual test, we can use a multimeter as a continuity tester. Here is video for both tests:
For simplicity, let us use two different color wires (red and yellow) and we'll go through step-by-step connection in the electrical box. Let's begin:
Working of Smart Power Strip:
You can also control the device from a smartphone using an Android app available on Google Playstore.
Same widgets will be there on the app once you logged in to your account:
So we built a Smart Power Strip to switch ON/OFF appliances through the internet using Cayenne cloud service. No more keeping devices ON when not in use and we can save power usage.
I would like to share some tests which might be useful for further improvement. I have a design circuit using S8050 transistor and 1N4148 zener diode which you can find in the Circuit/Schematics section below. But I was not able to drive the relay properly, so I replaced those components with 2n2222 NPN transistors and 1N4007 diode.
The board is now working fine, still experimenting so more could be found out.
Please comment with any suggestions regarding the project or especially about PCB design. I still want to improve PCB to make it more compact considering electrical pad sizing for high current.
