Blind's Eye

My project helps visually challenged people to walk without crashing into walls and obstacles. This help them to live freely without taking

IntermediateProtip5 hours3,439
Blind's Eye

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Breadboard (generic)
Breadboard (generic)
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Buzzer
Buzzer
×1

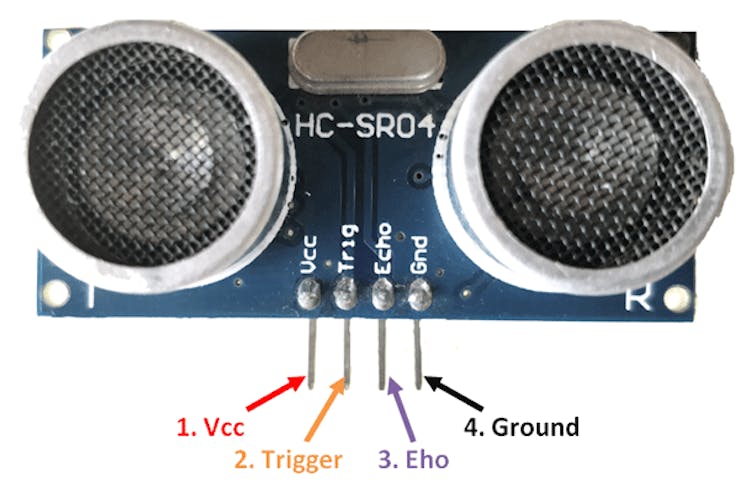

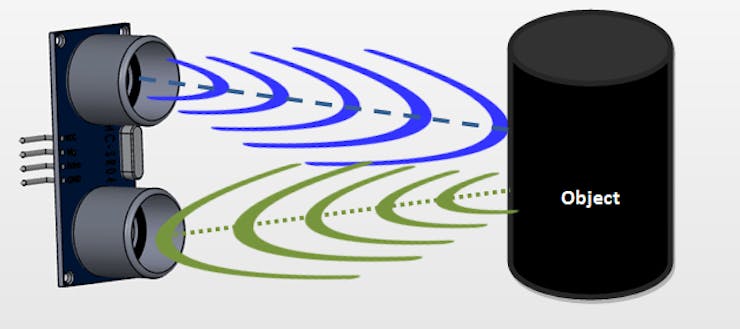

Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
Slide Switch
Slide Switch
×1
Solar Cockroach Vibrating Disc Motor
Brown Dog Gadgets Solar Cockroach Vibrating Disc Motor
in place of this I used a normal DC motor.
×1

Software apps and online services

Arduino IDE
Arduino IDE
tinkercs

Hand tools and fabrication machines

Mastech MS8217 Autorange Digital Multimeter
Digilent Mastech MS8217 Autorange Digital Multimeter

Story

Read more

Custom parts and enclosures

blog_w25NgsnSMa.docx

Schematics

blind's eye

This circuit diagram is made with the help of tinkercad
Blinds eye kbl71ri8ud

Code

code

C/C++
#define trigPin 13
#define echoPin 12
#define motor 7
#define buzzer 6

void setup()
{ pinMode(trigPin, OUTPUT);
pinMode(echoPin, INPUT);
pinMode(motor, OUTPUT);
pinMode(buzzer,OUTPUT);
}

void loop()
{ long duration, distance;
digitalWrite(trigPin, LOW);
delayMicroseconds(2);
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);

duration = pulseIn(echoPin, HIGH);
distance = (duration/2) / 29.1;

if (distance < 70) // Checking the distance, you can change the value
{
digitalWrite(motor,HIGH); // When the the distance below 100cm
digitalWrite(buzzer,HIGH);
} else
{
digitalWrite(motor,LOW);// when greater than 100cm
digitalWrite(buzzer,LOW);
} delay(500);
}
