48 x 8 Scrolling LED Matrix using Arduino.

48x8 Programmable Scrolling LED Matrix using Arduino and Shift Registers.

IntermediateFull instructions provided2 days18,917

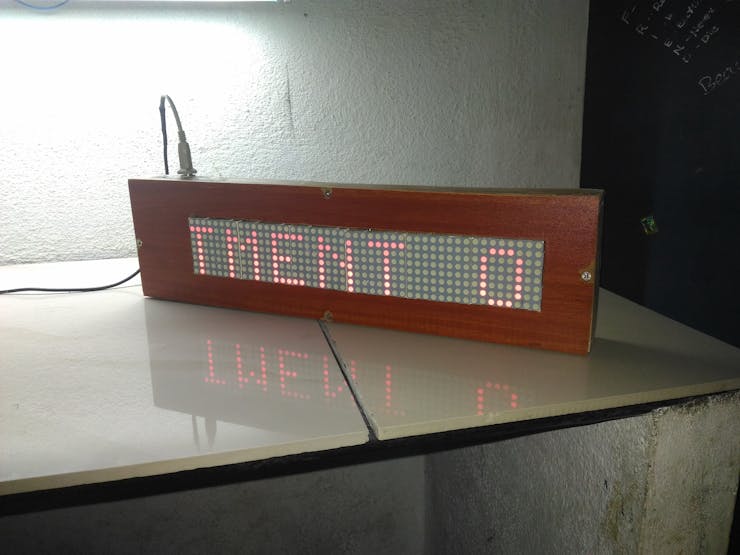

48 x 8 Scrolling LED Matrix using Arduino.

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
74HC595 8 bit Serial to Parallel Shift Register
×7
Resistor 475 ohm
Resistor 475 ohm
×56
Male Header 40 Position 1 Row (0.1")
Male Header 40 Position 1 Row (0.1")
×2
Female Header 8 Position 1 Row (0.1")
Female Header 8 Position 1 Row (0.1")
×21
General purpose PCB board 6"x4"
×4

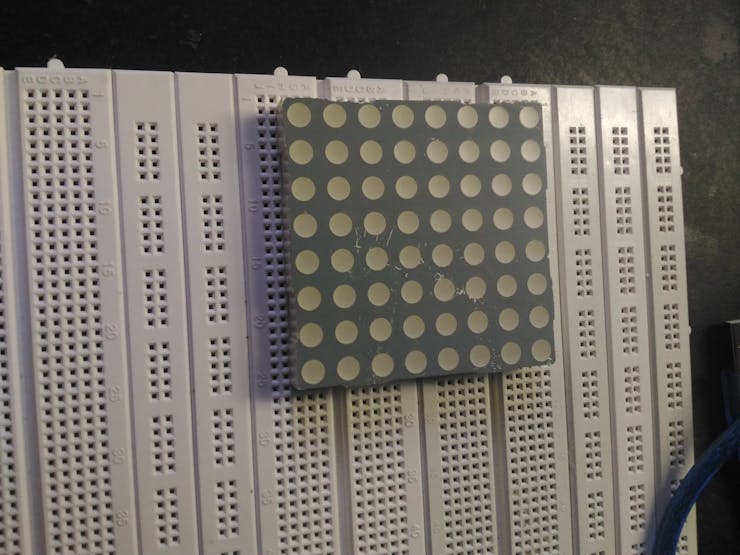

8X8 LED Matrix
×6
BC 548 Transistor
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)
Hot glue gun (generic)
Hot glue gun (generic)
Mastech MS8217 Autorange Digital Multimeter
Digilent Mastech MS8217 Autorange Digital Multimeter

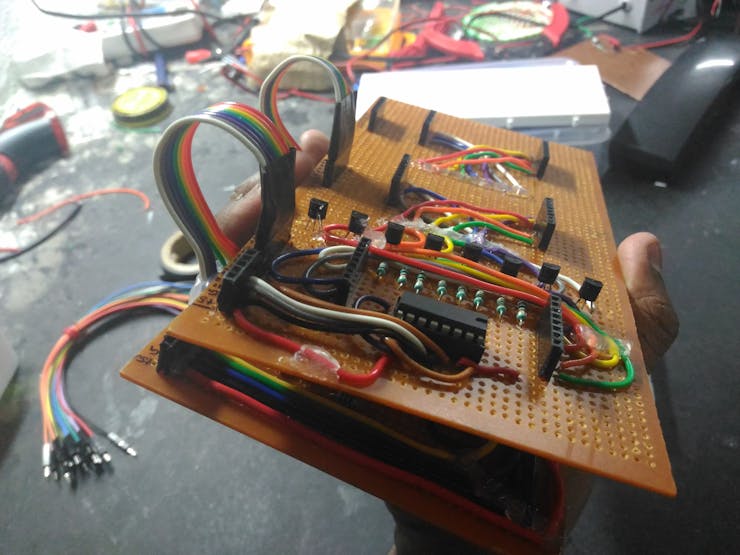

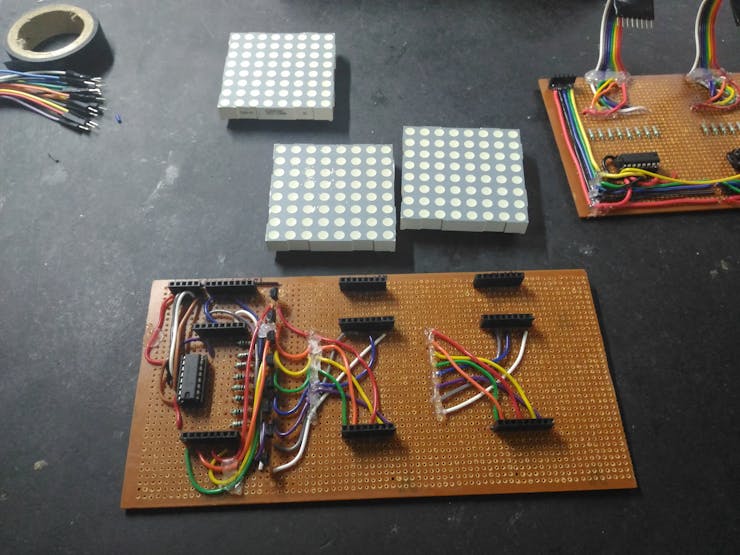

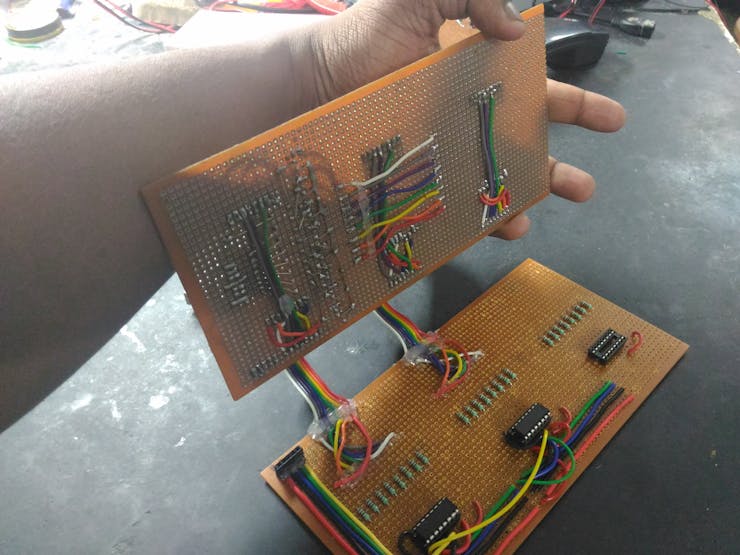

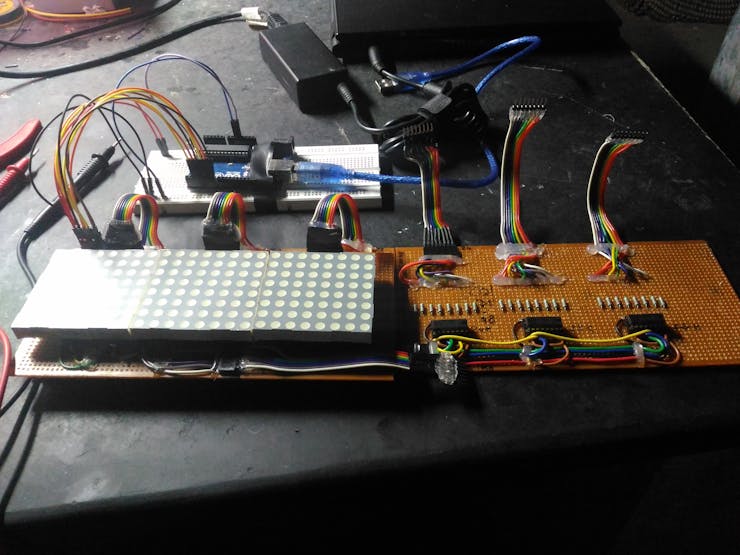

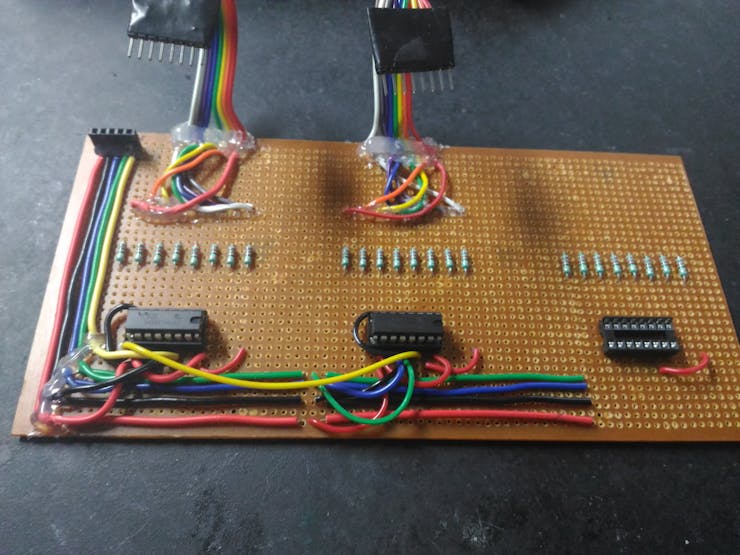

Story

Read more

Schematics

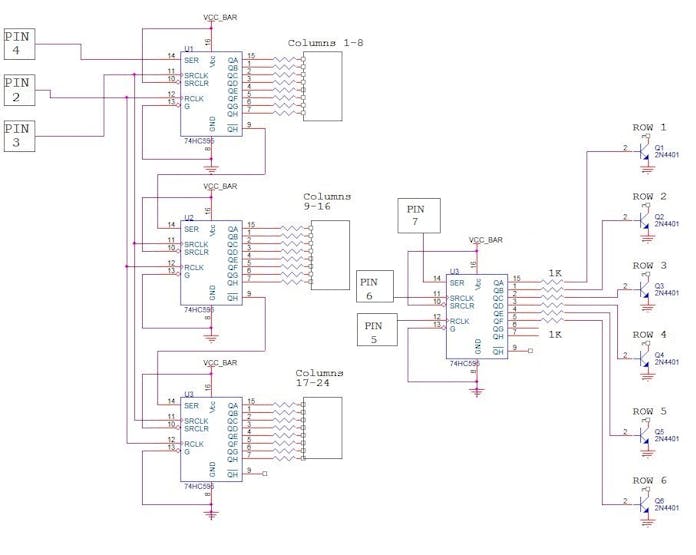

Circuit Diagram

For Reference purpose only. For pin connections, refer to the comments in the code.
Flqq5bzhfptezj0 chwceqcs3g

Code

Arduino Code for 48x8 LED Matrix

C/C++
Aduino code for 48x8 LED Matrix. The connections and the code are explained as comments in the code itself.
/*////////////////////////////////////////////////////////////////////////////////
 * Arduino code to display scrolling characters on 6 or more 8x8 LED matrix.    *
 * The no: of matrices can be increased with a small change in code.            *
 * Comments are given in each statement for editing.                            *
 * Circuit designed and program coded by Prasanth K S                           *
 * Contact : Prasanthksubash@gmail.com                                          *
/*////////////////////////////////////////////////////////////////////////////////

char msg[] ="WELCOME WIZ";//Change the text here.
int scrollspeed=5;//Set the scroll speed ( lower=faster)

int x;
int y;

//Columns
int clockPin1 = 2; //Arduino pin connected to Clock Pin 11 of 74HC595
int latchPin1 = 3; //Arduino pin connected to Latch Pin 12 of 74HC595
int dataPin1 = 4;  //Arduino pin connected to Data Pin 14 of 74HC595

//Rows
int clockPin2 = 5; //Arduino pin connected to Clock Pin 11 of 74HC595
int latchPin2 = 6; //Arduino pin connected to Latch Pin 12 of 74HC595
int dataPin2 = 7;  //Arduino pin connected to Data Pin 14 of 74HC595

//BITMAP
//Bits in this array represents one LED of the matrix
// 8 is # of rows, 6 is # of LED matrices
byte bitmap[8][7];

int numZones = sizeof(bitmap) / 8; // One Zone refers to one 8 x 8 Matrix ( Group of 8 columns)
int maxZoneIndex = numZones-1;
int numCols = numZones * 8;

//FONT DEFENITION
byte alphabets[][8] = {
 {0,0,0,0,0},//@ as SPACE
 //{8,28,54,99,65},//<<
 {31, 36, 68, 36, 31},//A
 {127, 73, 73, 73, 54},//B
 {62, 65, 65, 65, 34},//C
 {127, 65, 65, 34, 28},//D
 {127, 73, 73, 65, 65},//E
 {127, 72, 72, 72, 64},//F
 {62, 65, 65, 69, 38},//G
 {127, 8, 8, 8, 127},//H
 {0, 65, 127, 65, 0},//I
 {2, 1, 1, 1, 126},//J
 {127, 8, 20, 34, 65},//K
 {127, 1, 1, 1, 1},//L
 {127, 32, 16, 32, 127},//M
 {127, 32, 16, 8, 127},//N
 {62, 65, 65, 65, 62},//O
 {127, 72, 72, 72, 48},//P
 {62, 65, 69, 66, 61},//Q
 {127, 72, 76, 74, 49},//R
 {50, 73, 73, 73, 38},//S
 {64, 64, 127, 64, 64},//T
 {126, 1, 1, 1, 126},//U
 {124, 2, 1, 2, 124},//V
 {126, 1, 6, 1, 126},//W
 {99, 20, 8, 20, 99},//X
 {96, 16, 15, 16, 96},//Y
 {67, 69, 73, 81, 97},//Z
};

void setup() {
 pinMode(latchPin1, OUTPUT);
 pinMode(clockPin1, OUTPUT);
 pinMode(dataPin1, OUTPUT);

 pinMode(latchPin2, OUTPUT);
 pinMode(clockPin2, OUTPUT);
 pinMode(dataPin2, OUTPUT);

 //Clear bitmap
 for (int row = 0; row < 8; row++) {
   for (int zone = 0; zone <= maxZoneIndex; zone++) {
     bitmap[row][zone] = 0;
   }
 }
}

//FUNCTIONS
// Displays bitmap array in the matrix
void RefreshDisplay()
{
 for (int row = 0; row < 8; row++) {
   int rowbit = 1 << row;
   digitalWrite(latchPin2, LOW);//Hold latchPin LOW for transmitting data
   shiftOut(dataPin2, clockPin2, MSBFIRST, rowbit);   //Transmit data

   //Start sending column bytes
   digitalWrite(latchPin1, LOW);//Hold latchPin LOW for transmitting data

   //Shift out to each matrix
   for (int zone = maxZoneIndex; zone >= 0; zone--)
   {
     shiftOut(dataPin1, clockPin1, MSBFIRST, bitmap[row][zone]);
   }

   //flip both latches at once to eliminate flicker
   digitalWrite(latchPin1, HIGH);//Return the latch pin 1 high to signal chip
   digitalWrite(latchPin2, HIGH);//Return the latch pin 2 high to signal chip

   //Wait
   delayMicroseconds(300);
 }
}

// Converts row and colum to bitmap bit and turn it off/on
void Plot(int col, int row, bool isOn)
{
 int zone = col / 8;
 int colBitIndex = x % 8;
 byte colBit = 1 << colBitIndex;
 if (isOn)
   bitmap[row][zone] =  bitmap[y][zone] | colBit;
 else
   bitmap[row][zone] =  bitmap[y][zone] & (~colBit);
}
// Plot each character of the message one column at a time, updated the display, shift bitmap left.
void XProcess()
{
 for (int charIndex=0; charIndex < (sizeof(msg)-1); charIndex++)
 {
   int alphabetIndex = msg[charIndex] - '@';
   if (alphabetIndex < 0) alphabetIndex=0;

   //Draw one character of the message
   // Each character is 5 columns wide, loop two more times to create 2 pixel space betwen characters
   for (int col = 0; col < 7; col++)
   {
     for (int row = 0; row < 8; row++)
     {
       // Set the pixel to what the alphabet say for columns 0 thru 4, but always leave columns 5 and 6 blank.
       bool isOn = 0;
       if (col<5) isOn = bitRead( alphabets[alphabetIndex][col], 7-row ) == 1;
       Plot( numCols-1, row, isOn); //Draw on the rightmost column, the shift loop below will scroll it leftward.
     }
     for (int refreshCount=0; refreshCount < scrollspeed; refreshCount++)
       RefreshDisplay();
     //Shift the bitmap one column to left
     for (int row=0; row<8; row++)
     {
       for (int zone=0; zone < numZones; zone++)
       {
         //This right shift would show as a left scroll on display because leftmost column is represented by least significant bit of the byte.
         bitmap[row][zone] = bitmap[row][zone] >> 1;
         // Shift over lowest bit from the next zone as highest bit of this zone.
         if (zone < maxZoneIndex) bitWrite(bitmap[row][zone], 7, bitRead(bitmap[row][zone+1],0));
       }
     }
   }
 }
}
void loop() {
 XProcess();
}
