Heart Rate Monitoring System

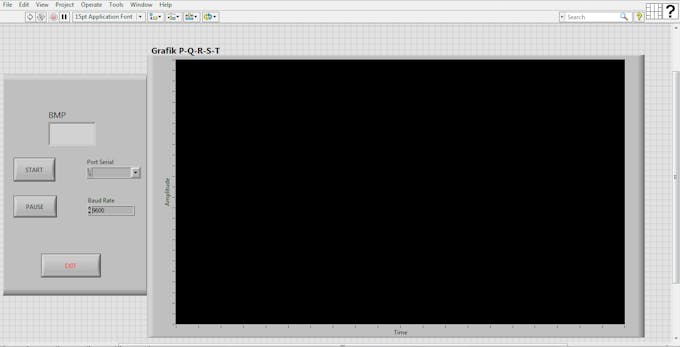

A heart rate monitoring system that tracks your heart beat in "BMP" but I made a little difference by adding some LabView Visualisations.

IntermediateFull instructions provided12 hours16,269
Heart Rate Monitoring System

Things used in this project

Hardware components

Arduino UNO & Genuino UNO
Arduino UNO & Genuino UNO
×1
Resistor 1k ohm
Resistor 1k ohm
×2
Capacitor 100 µF
Capacitor 100 µF
×2
Resistor 100 ohm
Resistor 100 ohm
×1
SparkFun Infrared Emitters and Detectors
×1
Jumper wires (generic)
Jumper wires (generic)
×1
Female Header 8 Position 1 Row (0.1")
Female Header 8 Position 1 Row (0.1")
×2
Male-Header 36 Position 1 Row- Long (0.1")
Male-Header 36 Position 1 Row- Long (0.1")
×2
Texas Instruments LM386
×1

Software apps and online services

Arduino IDE
Arduino IDE
Arduino Web Editor
Arduino Web Editor
LabVIEW Home Bundle
Digilent LabVIEW Home Bundle

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Schematics

Scematic use Eagle

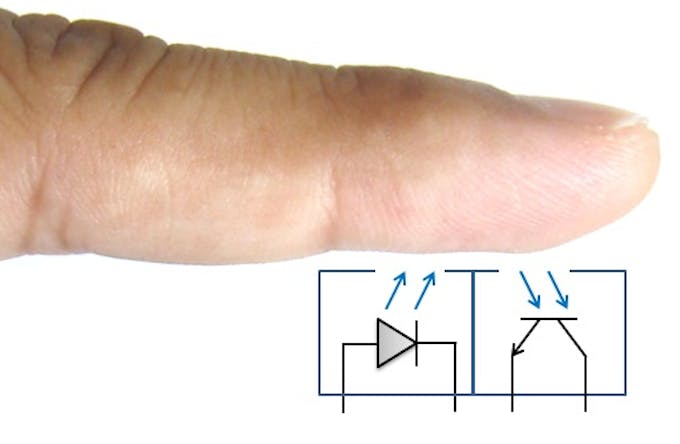

This scematic of Hearth Rate using Infrared and phototransistor
Blewflosmsral20de7fn

Code

Heart Rate Sketch

Hearth Rate Program full

it is include all file that you need to make this project

Freqmeasure library
