FPGA Camera System

Interface a CMOS camera with a ZYNQ-7000 series FPGA SoC and output live video feed to a VGA screen.

AdvancedFull instructions provided10 hours510

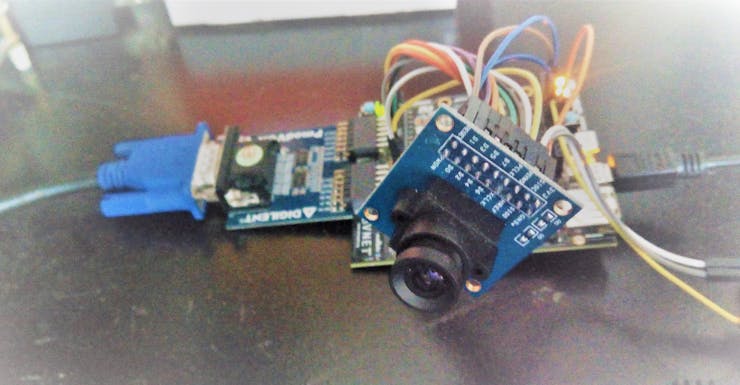

FPGA Camera System

Things used in this project

Hardware components

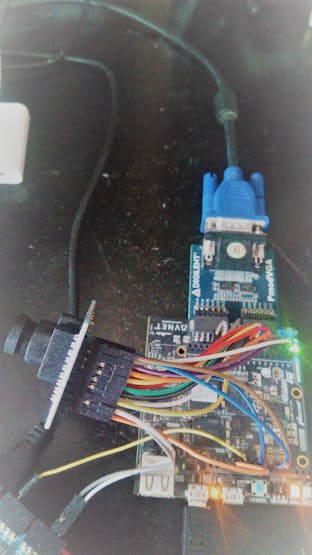

MiniZed
Avnet MiniZed
×1
MiniZed
Xilinx MiniZed
×1
Jumper wires (generic)
Jumper wires (generic)
×1

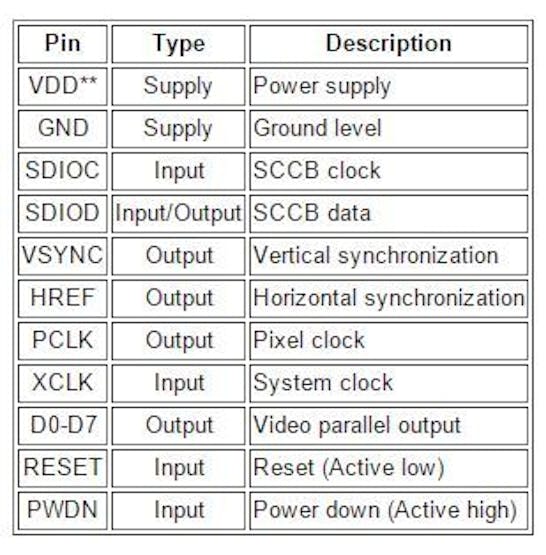

OV7670
×1

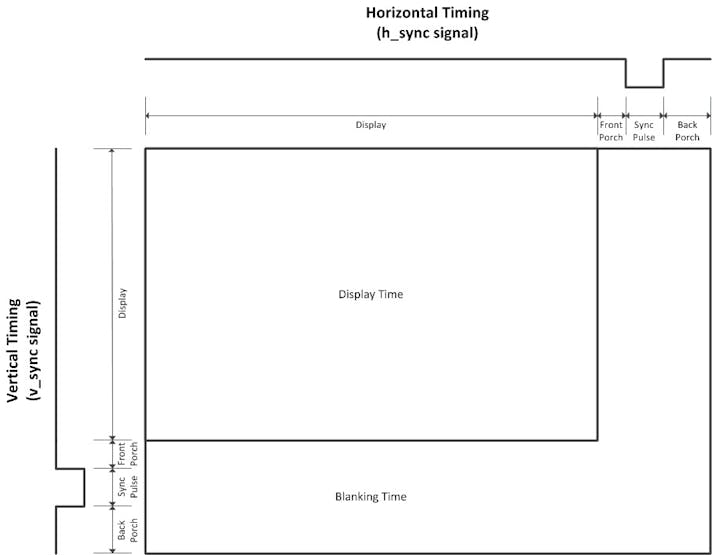

Digilent PMOD VGA
×1
VGA Monitor
×1

Software apps and online services

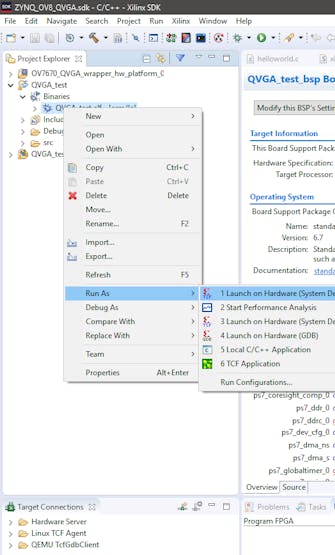

Vivado Design Suite
Xilinx Vivado Design Suite

Story

Read more

Schematics

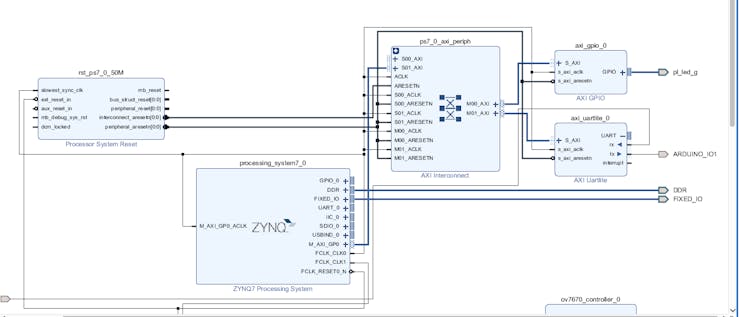

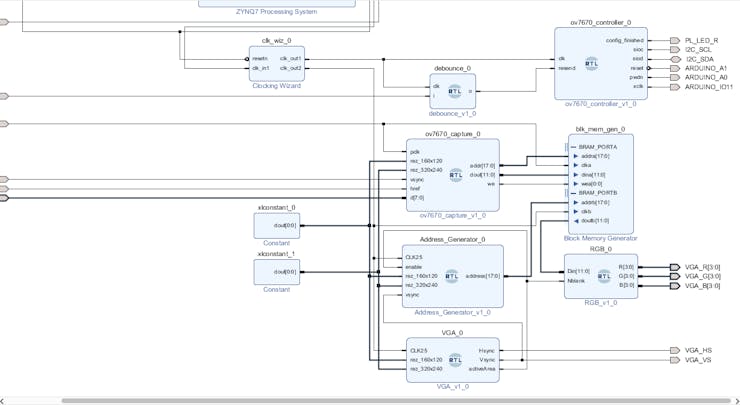

OV7670 to VGA using Minized SoC

Top level interface of the video system
1 zxyaifvtk2

Code

ov7670_capture.vhd

VHDL

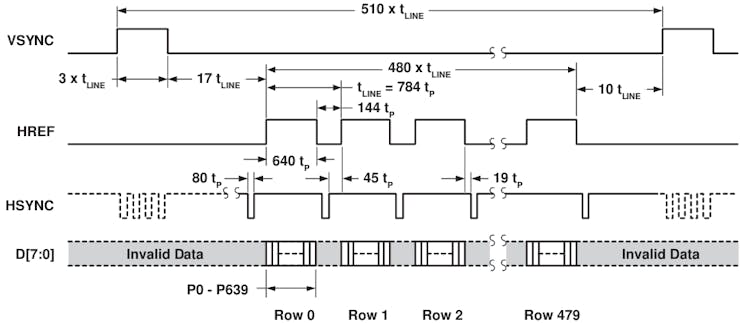

Camera capture module
----------------------------------------------------------------------------------
-- Engineer: Mike Field <hamster@snap.net.nz>
--
-- Description: Captures the pixels coming from the OV7670 camera and
--              Stores them in block RAM
--
-- The length of href last controls how often pixels are captive - (2 downto 0) stores
-- one pixel every 4 cycles.
--
-- "line" is used to control how often data is captured. In this case every forth
-- line
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;

entity ov7670_capture is
    Port ( pclk  : in   STD_LOGIC;
           rez_160x120 : IN std_logic;
           rez_320x240 : IN std_logic;
           vsync : in   STD_LOGIC;
           href  : in   STD_LOGIC;
           d     : in   STD_LOGIC_VECTOR (7 downto 0);
           addr  : out  STD_LOGIC_VECTOR (17 downto 0);
           dout  : out  STD_LOGIC_VECTOR (11 downto 0);
           we    : out  STD_LOGIC);
end ov7670_capture;

architecture Behavioral of ov7670_capture is
   signal d_latch      : std_logic_vector(15 downto 0) := (others => '0');
   signal address      : STD_LOGIC_VECTOR(17 downto 0) := (others => '0');
   signal line         : std_logic_vector(1 downto 0)  := (others => '0');
   signal href_last    : std_logic_vector(6 downto 0)  := (others => '0');
   signal we_reg       : std_logic := '0';
   signal href_hold    : std_logic := '0';
   signal latched_vsync : STD_LOGIC := '0';
   signal latched_href  : STD_LOGIC := '0';
   signal latched_d     : STD_LOGIC_VECTOR (7 downto 0) := (others => '0');
begin
   addr <= address;
   we <= we_reg;
   dout    <= d_latch(15 downto 12) & d_latch(10 downto 7) & d_latch(4 downto 1);

capture_process: process(pclk)
   begin
      if falling_edge(pclk) then
         if we_reg = '1' then
            address <= std_logic_vector(unsigned(address)+1);
         end if;

         -- This is a bit tricky href starts a pixel transfer that takes 3 cycles
         --        Input   | state after clock tick
         --         href   | wr_hold    d_latch           dout                we address  address_next
         -- cycle -1  x    |    xx      xxxxxxxxxxxxxxxx  xxxxxxxxxxxx  x   xxxx     xxxx
         -- cycle 0   1    |    x1      xxxxxxxxRRRRRGGG  xxxxxxxxxxxx  x   xxxx     addr
         -- cycle 1   0    |    10      RRRRRGGGGGGBBBBB  xxxxxxxxxxxx  x   addr     addr
         -- cycle 2   x    |    0x      GGGBBBBBxxxxxxxx  RRRRGGGGBBBB  1   addr     addr+1

         -- detect the rising edge on href - the start of the scan line
         if href_hold = '0' and latched_href = '1' then
            case line is
               when "00"   => line <= "01";
               when "01"   => line <= "10";
               when "10"   => line <= "11";
               when others => line <= "00";
            end case;
         end if;
         href_hold <= latched_href;

         -- capturing the data from the camera, 12-bit RGB
         if latched_href = '1' then
            d_latch <= d_latch( 7 downto 0) & latched_d;
         end if;
         we_reg  <= '0';

         -- Is a new screen about to start (i.e. we have to restart capturing
         if latched_vsync = '1' then
            address      <= (others => '0');
            href_last    <= (others => '0');
            line         <= (others => '0');
         else
            -- If not, set the write enable whenever we need to capture a pixel
            if (rez_160x120 = '1' and href_last(6) = '1') or
               (rez_320x240 = '1' and href_last(2) = '1') or
               (rez_160x120 = '0' and rez_320x240  = '0' and href_last(0) = '1') then

               if rez_160x120 = '1' then
                  if line = "10" then
                     we_reg <= '1';
                   end if;
               elsif rez_320x240 = '1' then
                  if line(1) = '1' then
                     we_reg <= '1';
                   end if;
               else
                   we_reg <= '1';
               end if;
               href_last <= (others => '0');
            else
               href_last <= href_last(href_last'high-1 downto 0) & latched_href;
            end if;
         end if;
      end if;
      if falling_edge(pclk) then
         latched_d     <= d;
         latched_href  <= href;
         latched_vsync <= vsync;
      end if;
   end process;
end Behavioral;

ov7670_controller.vhd

VHDL
----------------------------------------------------------------------------------
-- Engineer: Mike Field <hamster@snap.net.nz>
--
-- Description: Controller for the OV760 camera - transferes registers to the
--              camera over an I2C like bus
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;

entity ov7670_controller is
    Port ( clk   : in    STD_LOGIC;
			  resend :in    STD_LOGIC;
			  config_finished : out std_logic;
           sioc  : out   STD_LOGIC;
           siod  : inout STD_LOGIC;
           reset : out   STD_LOGIC;
           pwdn  : out   STD_LOGIC;
			  xclk  : out   STD_LOGIC
);
end ov7670_controller;

architecture Behavioral of ov7670_controller is
	COMPONENT i3c2 GENERIC (
		clk_divide  : std_logic_vector(7 downto 0)
   );
	PORT(
		clk : IN std_logic;
		inst_data : IN std_logic_vector(8 downto 0);
		inputs : IN std_logic_vector(15 downto 0);
		i2c_sda : INOUT std_logic;
		inst_address : OUT std_logic_vector(9 downto 0);
		i2c_scl : OUT std_logic;
		outputs : OUT std_logic_vector(15 downto 0);
		reg_addr : OUT std_logic_vector(4 downto 0);
		reg_data : OUT std_logic_vector(7 downto 0);
		reg_write : OUT std_logic;
		error : OUT std_logic
		);
	END COMPONENT;

   signal inputs  : std_logic_vector(15 downto 0);
   signal outputs : std_logic_vector(15 downto 0);
   signal data    : std_logic_vector( 8 downto 0);
   signal address : std_logic_vector( 9 downto 0);
   signal sys_clk : std_logic;
begin
   inputs(0) <= resend;
   config_finished <= outputs(0);

	Inst_i3c2: i3c2 GENERIC MAP(
      clk_divide => std_logic_vector(to_unsigned(125,8))
   ) PORT MAP(
		clk => clk,
		inst_address => address ,
		inst_data => data,
		i2c_scl => sioc,
		i2c_sda => siod,
		inputs => inputs,
		outputs => outputs,
		reg_addr => open,
		reg_data => open,
		reg_write => open,
		error => open
	);

	reset <= '1'; 						-- Normal mode
	pwdn  <= '0'; 						-- Power device up
	xclk  <= sys_clk;

	process(clk)
	begin
		if rising_edge(clk) then
			sys_clk <= not sys_clk;

         case address is
           when "0000000000" => data <= "011100100";
           when "0000000001" => data <= "101000010";
           when "0000000010" => data <= "100010010";
           when "0000000011" => data <= "110000000";
           when "0000000100" => data <= "011111111";
           when "0000000101" => data <= "011101001";
           when "0000000110" => data <= "101000010";
           when "0000000111" => data <= "100010010";
           when "0000001000" => data <= "100000100";
           when "0000001001" => data <= "011111111";
           when "0000001010" => data <= "101000010";
           when "0000001011" => data <= "100010001";
           when "0000001100" => data <= "100000000";
           when "0000001101" => data <= "011111111";
           when "0000001110" => data <= "101000010";
           when "0000001111" => data <= "100001100";
           when "0000010000" => data <= "100000000";
           when "0000010001" => data <= "011111111";
           when "0000010010" => data <= "101000010";
           when "0000010011" => data <= "100111110";
           when "0000010100" => data <= "100000000";
           when "0000010101" => data <= "011111111";
           when "0000010110" => data <= "101000010";
           when "0000010111" => data <= "110001100";
           when "0000011000" => data <= "100000000";
           when "0000011001" => data <= "011111111";
           when "0000011010" => data <= "101000010";
           when "0000011011" => data <= "100000100";
           when "0000011100" => data <= "100000000";
           when "0000011101" => data <= "011111111";
           when "0000011110" => data <= "101000010";
           when "0000011111" => data <= "101000000";
           when "0000100000" => data <= "100010000";
           when "0000100001" => data <= "011111111";
           when "0000100010" => data <= "101000010";
           when "0000100011" => data <= "100111010";
           when "0000100100" => data <= "100000100";
           when "0000100101" => data <= "011111111";
           when "0000100110" => data <= "101000010";
           when "0000100111" => data <= "100010100";
           when "0000101000" => data <= "100111000";
           when "0000101001" => data <= "011111111";
           when "0000101010" => data <= "101000010";
           when "0000101011" => data <= "101001111";
           when "0000101100" => data <= "101000000";
           when "0000101101" => data <= "011111111";
           when "0000101110" => data <= "101000010";
           when "0000101111" => data <= "101010000";
           when "0000110000" => data <= "100110100";
           when "0000110001" => data <= "011111111";
           when "0000110010" => data <= "101000010";
           when "0000110011" => data <= "101010001";
           when "0000110100" => data <= "100001100";
           when "0000110101" => data <= "011111111";
           when "0000110110" => data <= "101000010";
           when "0000110111" => data <= "101010010";
           when "0000111000" => data <= "100010111";
           when "0000111001" => data <= "011111111";
           when "0000111010" => data <= "101000010";
           when "0000111011" => data <= "101010011";
           when "0000111100" => data <= "100101001";
           when "0000111101" => data <= "011111111";
           when "0000111110" => data <= "101000010";
           when "0000111111" => data <= "101010100";
           when "0001000000" => data <= "101000000";
           when "0001000001" => data <= "011111111";
           when "0001000010" => data <= "101000010";
           when "0001000011" => data <= "101011000";
           when "0001000100" => data <= "100011110";
           when "0001000101" => data <= "011111111";
           when "0001000110" => data <= "101000010";
           when "0001000111" => data <= "100111101";
           when "0001001000" => data <= "111000000";
           when "0001001001" => data <= "011111111";
           when "0001001010" => data <= "101000010";
           when "0001001011" => data <= "100010001";
           when "0001001100" => data <= "100000000";
           when "0001001101" => data <= "011111111";
           when "0001001110" => data <= "101000010";
           when "0001001111" => data <= "100010111";
           when "0001010000" => data <= "100010001";
           when "0001010001" => data <= "011111111";
           when "0001010010" => data <= "101000010";
           when "0001010011" => data <= "100011000";
           when "0001010100" => data <= "101100001";
           when "0001010101" => data <= "011111111";
           when "0001010110" => data <= "101000010";
           when "0001010111" => data <= "100110010";
           when "0001011000" => data <= "110100100";
           when "0001011001" => data <= "011111111";
           when "0001011010" => data <= "101000010";
           when "0001011011" => data <= "100011001";
           when "0001011100" => data <= "100000011";
           when "0001011101" => data <= "011111111";
           when "0001011110" => data <= "101000010";
           when "0001011111" => data <= "100011010";
           when "0001100000" => data <= "101111011";
           when "0001100001" => data <= "011111111";
           when "0001100010" => data <= "101000010";
           when "0001100011" => data <= "100000011";
           when "0001100100" => data <= "100001010";
           when "0001100101" => data <= "011111111";
           when "0001100110" => data <= "101000010";
           when "0001100111" => data <= "100001110";
           when "0001101000" => data <= "101100001";
           when "0001101001" => data <= "011111111";
           when "0001101010" => data <= "101000010";
           when "0001101011" => data <= "100001111";
           when "0001101100" => data <= "101001011";
           when "0001101101" => data <= "011111111";
           when "0001101110" => data <= "101000010";
           when "0001101111" => data <= "100010110";
           when "0001110000" => data <= "100000010";
           when "0001110001" => data <= "011111111";
           when "0001110010" => data <= "101000010";
           when "0001110011" => data <= "100011110";
           when "0001110100" => data <= "100110111";
           when "0001110101" => data <= "011111111";
           when "0001110110" => data <= "101000010";
           when "0001110111" => data <= "100100001";
           when "0001111000" => data <= "100000010";
           when "0001111001" => data <= "011111111";
           when "0001111010" => data <= "101000010";
           when "0001111011" => data <= "100100010";
           when "0001111100" => data <= "110010001";
           when "0001111101" => data <= "011111111";
           when "0001111110" => data <= "101000010";
           when "0001111111" => data <= "100101001";
           when "0010000000" => data <= "100000111";
           when "0010000001" => data <= "011111111";
           when "0010000010" => data <= "101000010";
           when "0010000011" => data <= "100110011";
           when "0010000100" => data <= "100001011";
           when "0010000101" => data <= "011111111";
           when "0010000110" => data <= "101000010";
           when "0010000111" => data <= "100110101";
           when "0010001000" => data <= "100001011";
           when "0010001001" => data <= "011111111";
           when "0010001010" => data <= "101000010";
           when "0010001011" => data <= "100110111";
           when "0010001100" => data <= "100011101";
           when "0010001101" => data <= "011111111";
           when "0010001110" => data <= "101000010";
           when "0010001111" => data <= "100111000";
           when "0010010000" => data <= "101110001";
           when "0010010001" => data <= "011111111";
           when "0010010010" => data <= "101000010";
           when "0010010011" => data <= "100111001";
           when "0010010100" => data <= "100101010";
           when "0010010101" => data <= "011111111";
           when "0010010110" => data <= "101000010";
           when "0010010111" => data <= "100111100";
           when "0010011000" => data <= "101111000";
           when "0010011001" => data <= "011111111";
           when "0010011010" => data <= "101000010";
           when "0010011011" => data <= "101001101";
           when "0010011100" => data <= "101000000";
           when "0010011101" => data <= "011111111";
           when "0010011110" => data <= "101000010";
           when "0010011111" => data <= "101001110";
           when "0010100000" => data <= "100100000";
           when "0010100001" => data <= "011111111";
           when "0010100010" => data <= "101000010";
           when "0010100011" => data <= "101101001";
           when "0010100100" => data <= "100000000";
           when "0010100101" => data <= "011111111";
           when "0010100110" => data <= "101000010";
           when "0010100111" => data <= "101101011";
           when "0010101000" => data <= "101001010";
           when "0010101001" => data <= "011111111";
           when "0010101010" => data <= "101000010";
           when "0010101011" => data <= "101110100";
           when "0010101100" => data <= "100010000";
           when "0010101101" => data <= "011111111";
           when "0010101110" => data <= "101000010";
           when "0010101111" => data <= "110001101";
           when "0010110000" => data <= "101001111";
           when "0010110001" => data <= "011111111";
           when "0010110010" => data <= "101000010";
           when "0010110011" => data <= "110001110";
           when "0010110100" => data <= "100000000";
           when "0010110101" => data <= "011111111";
           when "0010110110" => data <= "101000010";
           when "0010110111" => data <= "110001111";
           when "0010111000" => data <= "100000000";
           when "0010111001" => data <= "011111111";
           when "0010111010" => data <= "101000010";
           when "0010111011" => data <= "110010000";
           when "0010111100" => data <= "100000000";
           when "0010111101" => data <= "011111111";
           when "0010111110" => data <= "101000010";
           when "0010111111" => data <= "110010001";
           when "0011000000" => data <= "100000000";
           when "0011000001" => data <= "011111111";
           when "0011000010" => data <= "101000010";
           when "0011000011" => data <= "110010110";
           when "0011000100" => data <= "100000000";
           when "0011000101" => data <= "011111111";
           when "0011000110" => data <= "101000010";
           when "0011000111" => data <= "110011010";
           when "0011001000" => data <= "100000000";
           when "0011001001" => data <= "011111111";
           when "0011001010" => data <= "101000010";
           when "0011001011" => data <= "110110000";
           when "0011001100" => data <= "110000100";
           when "0011001101" => data <= "011111111";
           when "0011001110" => data <= "101000010";
           when "0011001111" => data <= "110110001";
           when "0011010000" => data <= "100001100";
           when "0011010001" => data <= "011111111";
           when "0011010010" => data <= "101000010";
           when "0011010011" => data <= "110110010";
           when "0011010100" => data <= "100001110";
           when "0011010101" => data <= "011111111";
           when "0011010110" => data <= "101000010";
           when "0011010111" => data <= "110110011";
           when "0011011000" => data <= "110000010";
           when "0011011001" => data <= "011111111";
           when "0011011010" => data <= "101000010";
           when "0011011011" => data <= "110111000";
           when "0011011100" => data <= "100001010";
           when "0011011101" => data <= "011111111";
           when "0011011110" => data <= "011111110";
           when "0011011111" => data <= "011111110";
           when "0011100000" => data <= "010000000";
           when "0011100001" => data <= "000000000";
           when "0011100010" => data <= "000011100";
           when others => data <= (others =>'0');
        end case;
		end if;
	end process;
end Behavioral;

i3c2.vhd

VHDL
----------------------------------------------------------------------------------
-- Engineer: Mike Field <hamster@snap.net.nz>
--
-- Create Date:    21:30:20 05/25/2013
-- Design Name:    i3c2 - Intelligent I2C Controller
-- Module Name:    i3c2 - Behavioral
-- Description:    The main CPU/logic
--
-- Revision:
-- Revision 0.01 - File Created
-- Additional Comments:
--
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;

entity i3c2 is
   Generic( clk_divide : STD_LOGIC_VECTOR (7 downto 0));

    Port ( clk : in  STD_LOGIC;
           inst_address : out  STD_LOGIC_VECTOR (9 downto 0);
           inst_data : in  STD_LOGIC_VECTOR (8 downto 0);
           i2c_scl : out  STD_LOGIC;
           i2c_sda : inout  STD_LOGIC;
           inputs : in  STD_LOGIC_VECTOR (15 downto 0);
           outputs : out  STD_LOGIC_VECTOR (15 downto 0) := (others => '0');
           reg_addr : out  STD_LOGIC_VECTOR (4 downto 0);
           reg_data : out  STD_LOGIC_VECTOR (7 downto 0);
           reg_write : out  STD_LOGIC;
           error : out STD_LOGIC);
end i3c2;

architecture Behavioral of i3c2 is

   constant STATE_RUN       : std_logic_vector(3 downto 0) := "0000";
   constant STATE_DELAY     : std_logic_vector(3 downto 0) := "0001";
   constant STATE_I2C_START : std_logic_vector(3 downto 0) := "0010";
   constant STATE_I2C_BITS  : std_logic_vector(3 downto 0) := "0011";
   constant STATE_I2C_STOP  : std_logic_vector(3 downto 0) := "0100";
   signal   state           : std_logic_vector(3 downto 0) := STATE_RUN;

   constant OPCODE_JUMP      : std_logic_vector( 3 downto 0) := "0000";
   constant OPCODE_SKIPSET   : std_logic_vector( 3 downto 0) := "0001";
   constant OPCODE_SKIPCLEAR : std_logic_vector( 3 downto 0) := "0010";
   constant OPCODE_SET       : std_logic_vector( 3 downto 0) := "0011";
   constant OPCODE_CLEAR     : std_logic_vector( 3 downto 0) := "0100";
   constant OPCODE_I2C_READ  : std_logic_vector( 3 downto 0) := "0101";
   constant OPCODE_DELAY     : std_logic_vector( 3 downto 0) := "0110";
   constant OPCODE_SKIPACK   : std_logic_vector( 3 downto 0) := "0111";
   constant OPCODE_SKIPNACK  : std_logic_vector( 3 downto 0) := "1000";
   constant OPCODE_NOP       : std_logic_vector( 3 downto 0) := "1001";
   constant OPCODE_I2C_STOP  : std_logic_vector( 3 downto 0) := "1010";
   constant OPCODE_I2C_WRITE : std_logic_vector( 3 downto 0) := "1011";
   constant OPCODE_WRITELOW  : std_logic_vector( 3 downto 0) := "1100";
   constant OPCODE_WRITEHI   : std_logic_vector( 3 downto 0) := "1101";
   constant OPCODE_UNKNOWN   : std_logic_vector( 3 downto 0) := "1110";
   signal   opcode           : std_logic_vector( 3 downto 0);


   signal ack_flag      : std_logic := '0';
   signal skip          : std_logic := '1';   -- IGNORE THE FIRST INSTRUCTION

   -- I2C status
   signal i2c_doing_read : std_logic := '0';
   signal i2c_started    : std_logic := '0';
   signal i2c_bits_left  : unsigned(3 downto 0);

   -- counters
   signal pcnext         : unsigned(9 downto 0) := (others => '0');
   signal delay         : unsigned(15 downto 0);
   signal bitcount      : unsigned( 7 downto 0);

   -- Input/output data
   signal i2c_data  : std_logic_vector( 8 downto 0);

begin

-- |Opcode   | Instruction | Action
-- +---------+-------------+----------------------------------------
-- |00nnnnnnn| JUMP m      | Set PC to m (n = m/8)
-- |01000nnnn| SKIPCLEAR n | Skip if input n clear
-- |01001nnnn| SKIPSET n   | skip if input n set
-- |01010nnnn| CLEAR n     | Clear output n
-- |01011nnnn| SET n       | Set output n
-- |0110nnnnn| READ n      | Read to register n
-- |01110nnnn| DELAY m     | Delay m clock cycles (n = log2(m))
-- |011110000| SKIPNACK    | Skip if NACK is set
-- |011110001| SKIPACK     | Skip if ACK is set
-- |011110010| WRITELOW    | Write inputs 7 downto 0 to the I2C bus
-- |011110011| WRITEHI     | Write inputs 15 downto 8 to the I2C bus
-- |011110100| USER0       | User defined
-- |.........|             |
-- |011111110| USER9       | User defined
-- |011111111| STOP        | Send Stop on i2C bus
-- |1nnnnnnnn| WRITE n     | Output n on I2C bus

   opcode <= OPCODE_JUMP      when inst_data(8 downto 7) = "00"        else
             OPCODE_SKIPCLEAR when inst_data(8 downto 4) = "01000"     else
             OPCODE_SKIPSET   when inst_data(8 downto 4) = "01001"     else
             OPCODE_CLEAR     when inst_data(8 downto 4) = "01010"     else
             OPCODE_SET       when inst_data(8 downto 4) = "01011"     else
             OPCODE_I2C_READ  when inst_data(8 downto 5) = "0110"      else
             OPCODE_DELAY     when inst_data(8 downto 4) = "01110"     else
             OPCODE_SKIPACK   when inst_data(8 downto 0) = "011110000" else
             OPCODE_SKIPNACK  when inst_data(8 downto 0) = "011110001" else
             OPCODE_WRITELOW  when inst_data(8 downto 0) = "011110010" else
             OPCODE_WRITEHI   when inst_data(8 downto 0) = "011110011" else
             -- user codes can go here
             OPCODE_NOP        when inst_data(8 downto 0) = "011111110" else
             OPCODE_I2C_STOP   when inst_data(8 downto 0) = "011111111" else
             OPCODE_I2C_WRITE  when inst_data(8 downto 8) = "1"         else OPCODE_UNKNOWN;

   inst_address <= std_logic_vector(pcnext);

cpu: process(clk)
   begin
      if rising_edge(clk) then
         case state is
            when STATE_I2C_START =>
               i2c_started <= '1';
               i2c_scl <= '1';

               if bitcount = unsigned("0" & clk_divide(clk_divide'high downto 1)) then
                 i2c_sda <= '0';
               end if;

               if bitcount = 0 then
                  state    <= STATE_I2C_BITS;
                  i2c_scl  <= '0';
                  bitcount <= unsigned(clk_divide);
               else
                  bitcount <= bitcount-1;
               end if;


            when STATE_I2C_BITS => -- scl has always just lowered '0' on entry
               -- set the data half way through clock low half of the cycle
               if bitcount = unsigned(clk_divide) - unsigned("00" & clk_divide(clk_divide'high downto 2)) then
                  if i2c_data(8) = '0' then
                     i2c_sda <= '0';
                  else
                     i2c_sda <= 'Z';
                  end if;
               end if;

               -- raise the clock half way thorugh
               if bitcount = unsigned("0" & clk_divide(clk_divide'high downto 1)) then
                  i2c_scl <= '1';
               end if;

               -- Input bits three quarters through the cycle
               if bitcount = unsigned("00" & clk_divide(clk_divide'high downto 2)) then
                  i2c_data <= i2c_data(7 downto 0) & i2c_sda;
               end if;

               -- lower the clock at the end of the cycle
               if bitcount = 0 then
                  i2c_scl <= '0';
                  if i2c_bits_left  = "000" then
                     i2c_scl <= '0';
                     if i2c_doing_read = '1' then
                        reg_data  <= i2c_data(8 downto 1);
                        reg_write <= '1';
                     end if;
                     ack_flag <= NOT i2c_data(0);
                     state    <= STATE_RUN;
                     pcnext   <= pcnext+1;
                  else
                     i2c_bits_left  <= i2c_bits_left -1;
                  end if;
                  bitcount <= unsigned(clk_divide);
               else
                  bitcount <= bitcount-1;
               end if;


            when STATE_I2C_STOP =>
               -- clock stays high, and data goes high half way through a bit
               i2c_started <= '0';
               if bitcount = unsigned(clk_divide) - unsigned("00" & clk_divide(clk_divide'high downto 2)) then
                  i2c_sda      <= '0';
               end if;

               if bitcount = unsigned("0" & clk_divide(clk_divide'high downto 1)) then
                  i2c_scl <= '1';
               end if;

               if bitcount = unsigned("00" & clk_divide(clk_divide'high downto 2)) then
                  i2c_sda      <= 'Z';
               end if;
               if bitcount = 0 then
                  state    <= STATE_RUN;
                  pcnext   <= pcnext+1;
               else
                  bitcount <= bitcount-1;
               end if;

            when STATE_DELAY =>
               if bitcount /= 0 then
                  bitcount <= bitcount -1;
               else
                  if delay = 0 then
                     pcnext       <= pcnext+1;
                     state <= STATE_RUN;
                  else
                     delay <= delay-1;
                     bitcount <= unsigned(clk_divide) - 1;
                  end if;
               end if;

            when STATE_RUN =>
               reg_data     <= "XXXXXXXX";

               if skip = '1'then
                  -- Do nothing for a cycle other than unset 'skip';
                  skip <= '0';
                  pcnext       <= pcnext+1;
               else
                  case opcode is
                     when OPCODE_JUMP =>
                        -- Ignore the next instruciton while fetching the jump destination
                        skip <= '1';
                        pcnext <= unsigned(inst_data(6 downto 0)) & "000";

                     when OPCODE_I2C_WRITE =>
                        i2c_data       <= inst_data(7 downto 0) & "1";
                        bitcount       <= unsigned(clk_divide);
                        i2c_doing_read <= '0';
                        i2c_bits_left  <= "1000";
                        if i2c_started = '0' then
                           state <= STATE_I2C_START;
                        else
                           state <= STATE_I2C_BITS;
                        end if;

                     when OPCODE_I2C_READ =>
                        reg_addr       <= inst_data(4 downto 0);
                        i2c_data       <= x"FF" & "1";  -- keep the SDA pulled up while clocking in data & ACK
                        bitcount       <= unsigned(clk_divide);
                        i2c_bits_left  <= "1000";
                        i2c_doing_read <= '1';
                        if i2c_started = '0' then
                           state <= STATE_I2C_START;
                        else
                           state <= STATE_I2C_BITS;
                        end if;

                     when OPCODE_SKIPCLEAR =>
                        skip   <= inputs(to_integer(unsigned(inst_data(3 downto 0)))) xnor inst_data(4);
                        pcnext <= pcnext+1;

                     when OPCODE_SKIPSET =>
                        skip   <= inputs(to_integer(unsigned(inst_data(3 downto 0)))) xnor inst_data(4);
                        pcnext <= pcnext+1;

                     when OPCODE_CLEAR =>
                        outputs(to_integer(unsigned(inst_data(3 downto 0)))) <= inst_data(4);
                        pcnext <= pcnext+1;

                     when OPCODE_SET =>
                        outputs(to_integer(unsigned(inst_data(3 downto 0)))) <= inst_data(4);
                        pcnext <= pcnext+1;

                     when OPCODE_SKIPACK =>
                        skip   <= ack_flag;
                        pcnext <= pcnext+1;

                     when OPCODE_SKIPNACK =>
                        skip   <= not ack_flag;
                        pcnext <= pcnext+1;

                     when OPCODE_DELAY =>
                        state <= STATE_DELAY;
                        bitcount <= unsigned(clk_divide);
                        case inst_data(3 downto 0) is
                           when "0000" => delay <= x"0001";
                           when "0001" => delay <= x"0002";
                           when "0010" => delay <= x"0004";
                           when "0011" => delay <= x"0008";
                           when "0100" => delay <= x"0010";
                           when "0101" => delay <= x"0020";
                           when "0110" => delay <= x"0040";
                           when "0111" => delay <= x"0080";
                           when "1000" => delay <= x"0100";
                           when "1001" => delay <= x"0200";
                           when "1010" => delay <= x"0400";
                           when "1011" => delay <= x"0800";
                           when "1100" => delay <= x"1000";
                           when "1101" => delay <= x"2000";
                           when "1110" => delay <= x"4000";
                           when others => delay <= x"8000";
                        end case;

                     when OPCODE_I2C_STOP =>
                        bitcount <= unsigned(clk_divide);
                        state    <= STATE_I2C_STOP;

                     when OPCODE_NOP =>
                        pcnext       <= pcnext+1;
                     when others =>
                        error <= '1';
                  end case;
               end if;

            when others =>
               state  <= STATE_RUN;
               pcnext <= (others => '0');
               skip   <= '1';

         end case;
      end if;
   end process;
end Behavioral;

debounce.vhd

VHDL
----------------------------------------------------------------------------------
-- Engineer: Mike Field <hamster@snap.net.nz>
--
-- Description: Convert the push button to a 1PPS that can be used to restart
--              camera initialisation
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.NUMERIC_STD.ALL;

entity debounce is
    Port ( clk : in  STD_LOGIC;
           i : in  STD_LOGIC;
           o : out  STD_LOGIC);
end debounce;

architecture Behavioral of debounce is
	signal c : unsigned(23 downto 0);
begin
	process(clk)
	begin
		if rising_edge(clk) then
		   if i = '1' then
		      if c = x"FFFFFF" then
					o <= '1';
				else
					o <= '0';
				end if;
				c <= c+1;
			else
				c <= (others => '0');
				o <= '0';
			end if;
		end if;
	end process;

end Behavioral;

VGA.vhd

VHDL
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;


entity RGB is
    Port ( Din 	: in	STD_LOGIC_VECTOR (11 downto 0);			-- niveau de gris du pixels sur 8 bits
			  Nblank : in	STD_LOGIC;										-- signal indique les zone d'affichage, hors la zone d'affichage
																					-- les trois couleurs prendre 0
           R,G,B 	: out	STD_LOGIC_VECTOR (3 downto 0));			-- les trois couleurs sur 12 bits
end RGB;

architecture Behavioral of RGB is

begin
		R <= Din(11 downto 8) when Nblank='1' else "0000";
		G <= Din(7 downto 4)  when Nblank='1' else "0000";
		B <= Din(3 downto 0)  when Nblank='1' else "0000";

end Behavioral;

Ov7670_minized.tcl

Tcl
TCL file to recreate the design.
################################################################
# This is a generated script based on design: OV7670_QVGA
#
# Though there are limitations about the generated script,
# the main purpose of this utility is to make learning
# IP Integrator Tcl commands easier.
################################################################

namespace eval _tcl {
proc get_script_folder {} {
   set script_path [file normalize [info script]]
   set script_folder [file dirname $script_path]
   return $script_folder
}
}
variable script_folder
set script_folder [_tcl::get_script_folder]

################################################################
# Check if script is running in correct Vivado version.
################################################################
set scripts_vivado_version 2018.3
set current_vivado_version [version -short]

if { [string first $scripts_vivado_version $current_vivado_version] == -1 } {
   puts ""
   catch {common::send_msg_id "BD_TCL-109" "ERROR" "This script was generated using Vivado <$scripts_vivado_version> and is being run in <$current_vivado_version> of Vivado. Please run the script in Vivado <$scripts_vivado_version> then open the design in Vivado <$current_vivado_version>. Upgrade the design by running \"Tools => Report => Report IP Status...\", then run write_bd_tcl to create an updated script."}

   return 1
}

################################################################
# START
################################################################

# To test this script, run the following commands from Vivado Tcl console:
# source OV7670_QVGA_script.tcl


# The design that will be created by this Tcl script contains the following
# module references:
# Address_Generator, RGB, VGA, debounce, ov7670_capture, ov7670_controller

# Please add the sources of those modules before sourcing this Tcl script.

# If there is no project opened, this script will create a
# project, but make sure you do not have an existing project
# <./myproj/project_1.xpr> in the current working folder.

set list_projs [get_projects -quiet]
if { $list_projs eq "" } {
   create_project project_1 myproj -part xc7z007sclg225-1
   set_property BOARD_PART em.avnet.com:minized:part0:1.2 [current_project]
}


# CHANGE DESIGN NAME HERE
variable design_name
set design_name OV7670_QVGA

# If you do not already have an existing IP Integrator design open,
# you can create a design using the following command:
#    create_bd_design $design_name

# Creating design if needed
set errMsg ""
set nRet 0

set cur_design [current_bd_design -quiet]
set list_cells [get_bd_cells -quiet]

if { ${design_name} eq "" } {
   # USE CASES:
   #    1) Design_name not set

   set errMsg "Please set the variable <design_name> to a non-empty value."
   set nRet 1

} elseif { ${cur_design} ne "" && ${list_cells} eq "" } {
   # USE CASES:
   #    2): Current design opened AND is empty AND names same.
   #    3): Current design opened AND is empty AND names diff; design_name NOT in project.
   #    4): Current design opened AND is empty AND names diff; design_name exists in project.

   if { $cur_design ne $design_name } {
      common::send_msg_id "BD_TCL-001" "INFO" "Changing value of <design_name> from <$design_name> to <$cur_design> since current design is empty."
      set design_name [get_property NAME $cur_design]
   }
   common::send_msg_id "BD_TCL-002" "INFO" "Constructing design in IPI design <$cur_design>..."

} elseif { ${cur_design} ne "" && $list_cells ne "" && $cur_design eq $design_name } {
   # USE CASES:
   #    5) Current design opened AND has components AND same names.

   set errMsg "Design <$design_name> already exists in your project, please set the variable <design_name> to another value."
   set nRet 1
} elseif { [get_files -quiet ${design_name}.bd] ne "" } {
   # USE CASES:
   #    6) Current opened design, has components, but diff names, design_name exists in project.
   #    7) No opened design, design_name exists in project.

   set errMsg "Design <$design_name> already exists in your project, please set the variable <design_name> to another value."
   set nRet 2

} else {
   # USE CASES:
   #    8) No opened design, design_name not in project.
   #    9) Current opened design, has components, but diff names, design_name not in project.

   common::send_msg_id "BD_TCL-003" "INFO" "Currently there is no design <$design_name> in project, so creating one..."

   create_bd_design $design_name

   common::send_msg_id "BD_TCL-004" "INFO" "Making design <$design_name> as current_bd_design."
   current_bd_design $design_name

}

common::send_msg_id "BD_TCL-005" "INFO" "Currently the variable <design_name> is equal to \"$design_name\"."

if { $nRet != 0 } {
   catch {common::send_msg_id "BD_TCL-114" "ERROR" $errMsg}
   return $nRet
}

set bCheckIPsPassed 1
##################################################################
# CHECK IPs
##################################################################
set bCheckIPs 1
if { $bCheckIPs == 1 } {
   set list_check_ips "\
xilinx.com:ip:axi_gpio:2.0\
xilinx.com:ip:axi_uartlite:2.0\
xilinx.com:ip:blk_mem_gen:8.4\
xilinx.com:ip:clk_wiz:6.0\
xilinx.com:ip:processing_system7:5.5\
xilinx.com:ip:proc_sys_reset:5.0\
xilinx.com:ip:xlconstant:1.1\
"

   set list_ips_missing ""
   common::send_msg_id "BD_TCL-006" "INFO" "Checking if the following IPs exist in the project's IP catalog: $list_check_ips ."

   foreach ip_vlnv $list_check_ips {
      set ip_obj [get_ipdefs -all $ip_vlnv]
      if { $ip_obj eq "" } {
         lappend list_ips_missing $ip_vlnv
      }
   }

   if { $list_ips_missing ne "" } {
      catch {common::send_msg_id "BD_TCL-115" "ERROR" "The following IPs are not found in the IP Catalog:\n  $list_ips_missing\n\nResolution: Please add the repository containing the IP(s) to the project." }
      set bCheckIPsPassed 0
   }

}

##################################################################
# CHECK Modules
##################################################################
set bCheckModules 1
if { $bCheckModules == 1 } {
   set list_check_mods "\
Address_Generator\
RGB\
VGA\
debounce\
ov7670_capture\
ov7670_controller\
"

   set list_mods_missing ""
   common::send_msg_id "BD_TCL-006" "INFO" "Checking if the following modules exist in the project's sources: $list_check_mods ."

   foreach mod_vlnv $list_check_mods {
      if { [can_resolve_reference $mod_vlnv] == 0 } {
         lappend list_mods_missing $mod_vlnv
      }
   }

   if { $list_mods_missing ne "" } {
      catch {common::send_msg_id "BD_TCL-115" "ERROR" "The following module(s) are not found in the project: $list_mods_missing" }
      common::send_msg_id "BD_TCL-008" "INFO" "Please add source files for the missing module(s) above."
      set bCheckIPsPassed 0
   }
}

if { $bCheckIPsPassed != 1 } {
  common::send_msg_id "BD_TCL-1003" "WARNING" "Will not continue with creation of design due to the error(s) above."
  return 3
}

##################################################################
# DESIGN PROCs
##################################################################



# Procedure to create entire design; Provide argument to make
# procedure reusable. If parentCell is "", will use root.
proc create_root_design { parentCell } {

  variable script_folder
  variable design_name

  if { $parentCell eq "" } {
     set parentCell [get_bd_cells /]
  }

  # Get object for parentCell
  set parentObj [get_bd_cells $parentCell]
  if { $parentObj == "" } {
     catch {common::send_msg_id "BD_TCL-100" "ERROR" "Unable to find parent cell <$parentCell>!"}
     return
  }

  # Make sure parentObj is hier blk
  set parentType [get_property TYPE $parentObj]
  if { $parentType ne "hier" } {
     catch {common::send_msg_id "BD_TCL-101" "ERROR" "Parent <$parentObj> has TYPE = <$parentType>. Expected to be <hier>."}
     return
  }

  # Save current instance; Restore later
  set oldCurInst [current_bd_instance .]

  # Set parent object as current
  current_bd_instance $parentObj


  # Create interface ports
  set DDR [ create_bd_intf_port -mode Master -vlnv xilinx.com:interface:ddrx_rtl:1.0 DDR ]
  set FIXED_IO [ create_bd_intf_port -mode Master -vlnv xilinx.com:display_processing_system7:fixedio_rtl:1.0 FIXED_IO ]
  set pl_led_g [ create_bd_intf_port -mode Master -vlnv xilinx.com:interface:gpio_rtl:1.0 pl_led_g ]

  # Create ports
  set ARDUINO_A0 [ create_bd_port -dir O ARDUINO_A0 ]
  set ARDUINO_A1 [ create_bd_port -dir O -type rst ARDUINO_A1 ]
  set ARDUINO_IO0 [ create_bd_port -dir I ARDUINO_IO0 ]
  set ARDUINO_IO1 [ create_bd_port -dir O ARDUINO_IO1 ]
  set ARDUINO_IO10 [ create_bd_port -dir I ARDUINO_IO10 ]
  set ARDUINO_IO11 [ create_bd_port -dir O ARDUINO_IO11 ]
  set ARDUINO_IO12 [ create_bd_port -dir I ARDUINO_IO12 ]
  set ARDUINO_IO13 [ create_bd_port -dir I ARDUINO_IO13 ]
  set I2C_SCL [ create_bd_port -dir O I2C_SCL ]
  set I2C_SDA [ create_bd_port -dir IO I2C_SDA ]
  set PL_LED_R [ create_bd_port -dir O PL_LED_R ]
  set PL_SW [ create_bd_port -dir I PL_SW ]
  set VGA_B [ create_bd_port -dir O -from 3 -to 0 VGA_B ]
  set VGA_G [ create_bd_port -dir O -from 3 -to 0 VGA_G ]
  set VGA_HS [ create_bd_port -dir O VGA_HS ]
  set VGA_R [ create_bd_port -dir O -from 3 -to 0 VGA_R ]
  set VGA_VS [ create_bd_port -dir O VGA_VS ]
  set d_0 [ create_bd_port -dir I -from 7 -to 0 d_0 ]

  # Create instance: Address_Generator_0, and set properties
  set block_name Address_Generator
  set block_cell_name Address_Generator_0
  if { [catch {set Address_Generator_0 [create_bd_cell -type module -reference $block_name $block_cell_name] } errmsg] } {
     catch {common::send_msg_id "BD_TCL-105" "ERROR" "Unable to add referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   } elseif { $Address_Generator_0 eq "" } {
     catch {common::send_msg_id "BD_TCL-106" "ERROR" "Unable to referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   }

  # Create instance: RGB_0, and set properties
  set block_name RGB
  set block_cell_name RGB_0
  if { [catch {set RGB_0 [create_bd_cell -type module -reference $block_name $block_cell_name] } errmsg] } {
     catch {common::send_msg_id "BD_TCL-105" "ERROR" "Unable to add referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   } elseif { $RGB_0 eq "" } {
     catch {common::send_msg_id "BD_TCL-106" "ERROR" "Unable to referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   }

  # Create instance: VGA_0, and set properties
  set block_name VGA
  set block_cell_name VGA_0
  if { [catch {set VGA_0 [create_bd_cell -type module -reference $block_name $block_cell_name] } errmsg] } {
     catch {common::send_msg_id "BD_TCL-105" "ERROR" "Unable to add referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   } elseif { $VGA_0 eq "" } {
     catch {common::send_msg_id "BD_TCL-106" "ERROR" "Unable to referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   }

  # Create instance: axi_gpio_0, and set properties
  set axi_gpio_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_gpio:2.0 axi_gpio_0 ]
  set_property -dict [ list \
   CONFIG.C_ALL_OUTPUTS {1} \
   CONFIG.C_GPIO_WIDTH {1} \
   CONFIG.GPIO_BOARD_INTERFACE {pl_led_g} \
   CONFIG.USE_BOARD_FLOW {true} \
 ] $axi_gpio_0

  # Create instance: axi_uartlite_0, and set properties
  set axi_uartlite_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:axi_uartlite:2.0 axi_uartlite_0 ]
  set_property -dict [ list \
   CONFIG.C_S_AXI_ACLK_FREQ_HZ {50000000} \
 ] $axi_uartlite_0

  # Create instance: blk_mem_gen_0, and set properties
  set blk_mem_gen_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:blk_mem_gen:8.4 blk_mem_gen_0 ]
  set_property -dict [ list \
   CONFIG.Byte_Size {9} \
   CONFIG.EN_SAFETY_CKT {false} \
   CONFIG.Enable_32bit_Address {false} \
   CONFIG.Enable_A {Always_Enabled} \
   CONFIG.Enable_B {Always_Enabled} \
   CONFIG.Fill_Remaining_Memory_Locations {false} \
   CONFIG.Memory_Type {Simple_Dual_Port_RAM} \
   CONFIG.Operating_Mode_A {NO_CHANGE} \
   CONFIG.Port_B_Clock {100} \
   CONFIG.Port_B_Enable_Rate {100} \
   CONFIG.Read_Width_A {12} \
   CONFIG.Read_Width_B {12} \
   CONFIG.Register_PortA_Output_of_Memory_Primitives {false} \
   CONFIG.Register_PortB_Output_of_Memory_Primitives {true} \
   CONFIG.Use_Byte_Write_Enable {false} \
   CONFIG.Use_RSTA_Pin {false} \
   CONFIG.Write_Depth_A {147000} \
   CONFIG.Write_Width_A {12} \
   CONFIG.Write_Width_B {12} \
   CONFIG.use_bram_block {Stand_Alone} \
 ] $blk_mem_gen_0

  # Create instance: clk_wiz_0, and set properties
  set clk_wiz_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:clk_wiz:6.0 clk_wiz_0 ]
  set_property -dict [ list \
   CONFIG.CLKOUT1_JITTER {151.636} \
   CONFIG.CLKOUT1_PHASE_ERROR {98.575} \
   CONFIG.CLKOUT1_REQUESTED_OUT_FREQ {50} \
   CONFIG.CLKOUT2_JITTER {175.402} \
   CONFIG.CLKOUT2_PHASE_ERROR {98.575} \
   CONFIG.CLKOUT2_REQUESTED_OUT_FREQ {25} \
   CONFIG.CLKOUT2_USED {true} \
   CONFIG.MMCM_CLKFBOUT_MULT_F {10.000} \
   CONFIG.MMCM_CLKOUT0_DIVIDE_F {20.000} \
   CONFIG.MMCM_CLKOUT1_DIVIDE {40} \
   CONFIG.MMCM_DIVCLK_DIVIDE {1} \
   CONFIG.NUM_OUT_CLKS {2} \
   CONFIG.RESET_PORT {resetn} \
   CONFIG.RESET_TYPE {ACTIVE_LOW} \
   CONFIG.USE_LOCKED {false} \
 ] $clk_wiz_0

  # Create instance: debounce_0, and set properties
  set block_name debounce
  set block_cell_name debounce_0
  if { [catch {set debounce_0 [create_bd_cell -type module -reference $block_name $block_cell_name] } errmsg] } {
     catch {common::send_msg_id "BD_TCL-105" "ERROR" "Unable to add referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   } elseif { $debounce_0 eq "" } {
     catch {common::send_msg_id "BD_TCL-106" "ERROR" "Unable to referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   }

  # Create instance: ov7670_capture_0, and set properties
  set block_name ov7670_capture
  set block_cell_name ov7670_capture_0
  if { [catch {set ov7670_capture_0 [create_bd_cell -type module -reference $block_name $block_cell_name] } errmsg] } {
     catch {common::send_msg_id "BD_TCL-105" "ERROR" "Unable to add referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   } elseif { $ov7670_capture_0 eq "" } {
     catch {common::send_msg_id "BD_TCL-106" "ERROR" "Unable to referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   }

  # Create instance: ov7670_controller_0, and set properties
  set block_name ov7670_controller
  set block_cell_name ov7670_controller_0
  if { [catch {set ov7670_controller_0 [create_bd_cell -type module -reference $block_name $block_cell_name] } errmsg] } {
     catch {common::send_msg_id "BD_TCL-105" "ERROR" "Unable to add referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   } elseif { $ov7670_controller_0 eq "" } {
     catch {common::send_msg_id "BD_TCL-106" "ERROR" "Unable to referenced block <$block_name>. Please add the files for ${block_name}'s definition into the project."}
     return 1
   }

  # Create instance: processing_system7_0, and set properties
  set processing_system7_0 [ create_bd_cell -type ip -vlnv xilinx.com:ip:processing_system7:5.5 processing_system7_0 ]
  set_property -dict [ list \
   CONFIG.PCW_ACT_APU_PERIPHERAL_FREQMHZ {666.666687} \
   CONFIG.PCW_ACT_CAN0_PERIPHERAL_FREQMHZ {23.8095} \
   CONFIG.PCW_ACT_CAN1_PERIPHERAL_FREQMHZ {23.8095} \
   CONFIG.PCW_ACT_CAN_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_DCI_PERIPHERAL_FREQMHZ {10.158730} \
   CONFIG.PCW_ACT_ENET0_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_ENET1_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_FPGA0_PERIPHERAL_FREQMHZ {50.000000} \
   CONFIG.PCW_ACT_FPGA1_PERIPHERAL_FREQMHZ {100.000000} \
   CONFIG.PCW_ACT_FPGA2_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_FPGA3_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_I2C_PERIPHERAL_FREQMHZ {50} \
   CONFIG.PCW_ACT_PCAP_PERIPHERAL_FREQMHZ {200.000000} \
   CONFIG.PCW_ACT_QSPI_PERIPHERAL_FREQMHZ {200.000000} \
   CONFIG.PCW_ACT_SDIO_PERIPHERAL_FREQMHZ {25.000000} \
   CONFIG.PCW_ACT_SMC_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_SPI_PERIPHERAL_FREQMHZ {10.000000} \
   CONFIG.PCW_ACT_TPIU_PERIPHERAL_FREQMHZ {200.000000} \
   CONFIG.PCW_ACT_TTC0_CLK0_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_ACT_TTC0_CLK1_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_ACT_TTC0_CLK2_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_ACT_TTC1_CLK0_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_ACT_TTC1_CLK1_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_ACT_TTC1_CLK2_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_ACT_TTC_PERIPHERAL_FREQMHZ {50} \
   CONFIG.PCW_ACT_UART_PERIPHERAL_FREQMHZ {100.000000} \
   CONFIG.PCW_ACT_USB0_PERIPHERAL_FREQMHZ {60} \
   CONFIG.PCW_ACT_USB1_PERIPHERAL_FREQMHZ {60} \
   CONFIG.PCW_ACT_WDT_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_APU_CLK_RATIO_ENABLE {6:2:1} \
   CONFIG.PCW_APU_PERIPHERAL_FREQMHZ {666.666666} \
   CONFIG.PCW_ARMPLL_CTRL_FBDIV {40} \
   CONFIG.PCW_CAN0_BASEADDR {0xE0008000} \
   CONFIG.PCW_CAN0_GRP_CLK_ENABLE {0} \
   CONFIG.PCW_CAN0_HIGHADDR {0xE0008FFF} \
   CONFIG.PCW_CAN0_PERIPHERAL_CLKSRC {External} \
   CONFIG.PCW_CAN0_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_CAN0_PERIPHERAL_FREQMHZ {-1} \
   CONFIG.PCW_CAN1_BASEADDR {0xE0009000} \
   CONFIG.PCW_CAN1_GRP_CLK_ENABLE {0} \
   CONFIG.PCW_CAN1_HIGHADDR {0xE0009FFF} \
   CONFIG.PCW_CAN1_PERIPHERAL_CLKSRC {External} \
   CONFIG.PCW_CAN1_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_CAN1_PERIPHERAL_FREQMHZ {-1} \
   CONFIG.PCW_CAN_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_CAN_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_CAN_PERIPHERAL_DIVISOR1 {1} \
   CONFIG.PCW_CAN_PERIPHERAL_FREQMHZ {100} \
   CONFIG.PCW_CAN_PERIPHERAL_VALID {0} \
   CONFIG.PCW_CLK0_FREQ {50000000} \
   CONFIG.PCW_CLK1_FREQ {100000000} \
   CONFIG.PCW_CLK2_FREQ {10000000} \
   CONFIG.PCW_CLK3_FREQ {10000000} \
   CONFIG.PCW_CORE0_FIQ_INTR {0} \
   CONFIG.PCW_CORE0_IRQ_INTR {0} \
   CONFIG.PCW_CORE1_FIQ_INTR {0} \
   CONFIG.PCW_CORE1_IRQ_INTR {0} \
   CONFIG.PCW_CPU_CPU_6X4X_MAX_RANGE {667} \
   CONFIG.PCW_CPU_CPU_PLL_FREQMHZ {1333.333} \
   CONFIG.PCW_CPU_PERIPHERAL_CLKSRC {ARM PLL} \
   CONFIG.PCW_CPU_PERIPHERAL_DIVISOR0 {2} \
   CONFIG.PCW_CRYSTAL_PERIPHERAL_FREQMHZ {33.333333} \
   CONFIG.PCW_DCI_PERIPHERAL_CLKSRC {DDR PLL} \
   CONFIG.PCW_DCI_PERIPHERAL_DIVISOR0 {15} \
   CONFIG.PCW_DCI_PERIPHERAL_DIVISOR1 {7} \
   CONFIG.PCW_DCI_PERIPHERAL_FREQMHZ {10.159} \
   CONFIG.PCW_DDRPLL_CTRL_FBDIV {32} \
   CONFIG.PCW_DDR_DDR_PLL_FREQMHZ {1066.667} \
   CONFIG.PCW_DDR_HPRLPR_QUEUE_PARTITION {HPR(0)/LPR(32)} \
   CONFIG.PCW_DDR_HPR_TO_CRITICAL_PRIORITY_LEVEL {15} \
   CONFIG.PCW_DDR_LPR_TO_CRITICAL_PRIORITY_LEVEL {2} \
   CONFIG.PCW_DDR_PERIPHERAL_CLKSRC {DDR PLL} \
   CONFIG.PCW_DDR_PERIPHERAL_DIVISOR0 {2} \
   CONFIG.PCW_DDR_PORT0_HPR_ENABLE {0} \
   CONFIG.PCW_DDR_PORT1_HPR_ENABLE {0} \
   CONFIG.PCW_DDR_PORT2_HPR_ENABLE {0} \
   CONFIG.PCW_DDR_PORT3_HPR_ENABLE {0} \
   CONFIG.PCW_DDR_RAM_BASEADDR {0x00100000} \
   CONFIG.PCW_DDR_RAM_HIGHADDR {0x1FFFFFFF} \
   CONFIG.PCW_DDR_WRITE_TO_CRITICAL_PRIORITY_LEVEL {2} \
   CONFIG.PCW_DM_WIDTH {2} \
   CONFIG.PCW_DQS_WIDTH {2} \
   CONFIG.PCW_DQ_WIDTH {16} \
   CONFIG.PCW_ENET0_BASEADDR {0xE000B000} \
   CONFIG.PCW_ENET0_GRP_MDIO_ENABLE {0} \
   CONFIG.PCW_ENET0_HIGHADDR {0xE000BFFF} \
   CONFIG.PCW_ENET0_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_ENET0_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_ENET0_PERIPHERAL_DIVISOR1 {1} \
   CONFIG.PCW_ENET0_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_ENET0_PERIPHERAL_FREQMHZ {1000 Mbps} \
   CONFIG.PCW_ENET0_RESET_ENABLE {0} \
   CONFIG.PCW_ENET1_BASEADDR {0xE000C000} \
   CONFIG.PCW_ENET1_GRP_MDIO_ENABLE {0} \
   CONFIG.PCW_ENET1_HIGHADDR {0xE000CFFF} \
   CONFIG.PCW_ENET1_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_ENET1_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_ENET1_PERIPHERAL_DIVISOR1 {1} \
   CONFIG.PCW_ENET1_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_ENET1_PERIPHERAL_FREQMHZ {1000 Mbps} \
   CONFIG.PCW_ENET1_RESET_ENABLE {0} \
   CONFIG.PCW_ENET_RESET_ENABLE {0} \
   CONFIG.PCW_ENET_RESET_POLARITY {Active Low} \
   CONFIG.PCW_EN_4K_TIMER {0} \
   CONFIG.PCW_EN_CAN0 {0} \
   CONFIG.PCW_EN_CAN1 {0} \
   CONFIG.PCW_EN_CLK0_PORT {1} \
   CONFIG.PCW_EN_CLK1_PORT {1} \
   CONFIG.PCW_EN_CLK2_PORT {0} \
   CONFIG.PCW_EN_CLK3_PORT {0} \
   CONFIG.PCW_EN_CLKTRIG0_PORT {0} \
   CONFIG.PCW_EN_CLKTRIG1_PORT {0} \
   CONFIG.PCW_EN_CLKTRIG2_PORT {0} \
   CONFIG.PCW_EN_CLKTRIG3_PORT {0} \
   CONFIG.PCW_EN_DDR {1} \
   CONFIG.PCW_EN_EMIO_CAN0 {0} \
   CONFIG.PCW_EN_EMIO_CAN1 {0} \
   CONFIG.PCW_EN_EMIO_CD_SDIO0 {1} \
   CONFIG.PCW_EN_EMIO_CD_SDIO1 {0} \
   CONFIG.PCW_EN_EMIO_ENET0 {0} \
   CONFIG.PCW_EN_EMIO_ENET1 {0} \
   CONFIG.PCW_EN_EMIO_GPIO {1} \
   CONFIG.PCW_EN_EMIO_I2C0 {1} \
   CONFIG.PCW_EN_EMIO_I2C1 {0} \
   CONFIG.PCW_EN_EMIO_MODEM_UART0 {1} \
   CONFIG.PCW_EN_EMIO_MODEM_UART1 {0} \
   CONFIG.PCW_EN_EMIO_PJTAG {0} \
   CONFIG.PCW_EN_EMIO_SDIO0 {1} \
   CONFIG.PCW_EN_EMIO_SDIO1 {0} \
   CONFIG.PCW_EN_EMIO_SPI0 {0} \
   CONFIG.PCW_EN_EMIO_SPI1 {0} \
   CONFIG.PCW_EN_EMIO_SRAM_INT {0} \
   CONFIG.PCW_EN_EMIO_TRACE {0} \
   CONFIG.PCW_EN_EMIO_TTC0 {0} \
   CONFIG.PCW_EN_EMIO_TTC1 {0} \
   CONFIG.PCW_EN_EMIO_UART0 {1} \
   CONFIG.PCW_EN_EMIO_UART1 {0} \
   CONFIG.PCW_EN_EMIO_WDT {0} \
   CONFIG.PCW_EN_EMIO_WP_SDIO0 {1} \
   CONFIG.PCW_EN_EMIO_WP_SDIO1 {0} \
   CONFIG.PCW_EN_ENET0 {0} \
   CONFIG.PCW_EN_ENET1 {0} \
   CONFIG.PCW_EN_GPIO {1} \
   CONFIG.PCW_EN_I2C0 {1} \
   CONFIG.PCW_EN_I2C1 {0} \
   CONFIG.PCW_EN_MODEM_UART0 {1} \
   CONFIG.PCW_EN_MODEM_UART1 {0} \
   CONFIG.PCW_EN_PJTAG {0} \
   CONFIG.PCW_EN_PTP_ENET0 {0} \
   CONFIG.PCW_EN_PTP_ENET1 {0} \
   CONFIG.PCW_EN_QSPI {1} \
   CONFIG.PCW_EN_RST0_PORT {1} \
   CONFIG.PCW_EN_RST1_PORT {0} \
   CONFIG.PCW_EN_RST2_PORT {0} \
   CONFIG.PCW_EN_RST3_PORT {0} \
   CONFIG.PCW_EN_SDIO0 {1} \
   CONFIG.PCW_EN_SDIO1 {1} \
   CONFIG.PCW_EN_SMC {0} \
   CONFIG.PCW_EN_SPI0 {0} \
   CONFIG.PCW_EN_SPI1 {0} \
   CONFIG.PCW_EN_TRACE {0} \
   CONFIG.PCW_EN_TTC0 {0} \
   CONFIG.PCW_EN_TTC1 {0} \
   CONFIG.PCW_EN_UART0 {1} \
   CONFIG.PCW_EN_UART1 {1} \
   CONFIG.PCW_EN_USB0 {1} \
   CONFIG.PCW_EN_USB1 {0} \
   CONFIG.PCW_EN_WDT {0} \
   CONFIG.PCW_FCLK0_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_FCLK0_PERIPHERAL_DIVISOR0 {7} \
   CONFIG.PCW_FCLK0_PERIPHERAL_DIVISOR1 {4} \
   CONFIG.PCW_FCLK1_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_FCLK1_PERIPHERAL_DIVISOR0 {7} \
   CONFIG.PCW_FCLK1_PERIPHERAL_DIVISOR1 {2} \
   CONFIG.PCW_FCLK2_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_FCLK2_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_FCLK2_PERIPHERAL_DIVISOR1 {1} \
   CONFIG.PCW_FCLK3_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_FCLK3_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_FCLK3_PERIPHERAL_DIVISOR1 {1} \
   CONFIG.PCW_FCLK_CLK0_BUF {TRUE} \
   CONFIG.PCW_FCLK_CLK1_BUF {TRUE} \
   CONFIG.PCW_FCLK_CLK2_BUF {FALSE} \
   CONFIG.PCW_FCLK_CLK3_BUF {FALSE} \
   CONFIG.PCW_FPGA0_PERIPHERAL_FREQMHZ {50} \
   CONFIG.PCW_FPGA1_PERIPHERAL_FREQMHZ {100} \
   CONFIG.PCW_FPGA2_PERIPHERAL_FREQMHZ {50} \
   CONFIG.PCW_FPGA3_PERIPHERAL_FREQMHZ {50} \
   CONFIG.PCW_FPGA_FCLK0_ENABLE {1} \
   CONFIG.PCW_FPGA_FCLK1_ENABLE {1} \
   CONFIG.PCW_FPGA_FCLK2_ENABLE {0} \
   CONFIG.PCW_FPGA_FCLK3_ENABLE {0} \
   CONFIG.PCW_GP0_EN_MODIFIABLE_TXN {1} \
   CONFIG.PCW_GP0_NUM_READ_THREADS {4} \
   CONFIG.PCW_GP0_NUM_WRITE_THREADS {4} \
   CONFIG.PCW_GP1_EN_MODIFIABLE_TXN {1} \
   CONFIG.PCW_GP1_NUM_READ_THREADS {4} \
   CONFIG.PCW_GP1_NUM_WRITE_THREADS {4} \
   CONFIG.PCW_GPIO_BASEADDR {0xE000A000} \
   CONFIG.PCW_GPIO_EMIO_GPIO_ENABLE {1} \
   CONFIG.PCW_GPIO_EMIO_GPIO_IO {16} \
   CONFIG.PCW_GPIO_EMIO_GPIO_WIDTH {16} \
   CONFIG.PCW_GPIO_HIGHADDR {0xE000AFFF} \
   CONFIG.PCW_GPIO_MIO_GPIO_ENABLE {1} \
   CONFIG.PCW_GPIO_MIO_GPIO_IO {MIO} \
   CONFIG.PCW_GPIO_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_I2C0_BASEADDR {0xE0004000} \
   CONFIG.PCW_I2C0_GRP_INT_ENABLE {1} \
   CONFIG.PCW_I2C0_GRP_INT_IO {EMIO} \
   CONFIG.PCW_I2C0_HIGHADDR {0xE0004FFF} \
   CONFIG.PCW_I2C0_I2C0_IO {EMIO} \
   CONFIG.PCW_I2C0_PERIPHERAL_ENABLE {1} \
   CONFIG.PCW_I2C0_RESET_ENABLE {0} \
   CONFIG.PCW_I2C1_BASEADDR {0xE0005000} \
   CONFIG.PCW_I2C1_GRP_INT_ENABLE {0} \
   CONFIG.PCW_I2C1_HIGHADDR {0xE0005FFF} \
   CONFIG.PCW_I2C1_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_I2C1_RESET_ENABLE {0} \
   CONFIG.PCW_I2C_PERIPHERAL_FREQMHZ {111.111115} \
   CONFIG.PCW_I2C_RESET_ENABLE {1} \
   CONFIG.PCW_I2C_RESET_POLARITY {Active Low} \
   CONFIG.PCW_I2C_RESET_SELECT {Share reset pin} \
   CONFIG.PCW_IMPORT_BOARD_PRESET {None} \
   CONFIG.PCW_INCLUDE_ACP_TRANS_CHECK {0} \
   CONFIG.PCW_INCLUDE_TRACE_BUFFER {0} \
   CONFIG.PCW_IOPLL_CTRL_FBDIV {42} \
   CONFIG.PCW_IO_IO_PLL_FREQMHZ {1400.000} \
   CONFIG.PCW_IRQ_F2P_INTR {0} \
   CONFIG.PCW_IRQ_F2P_MODE {DIRECT} \
   CONFIG.PCW_MIO_0_DIRECTION {inout} \
   CONFIG.PCW_MIO_0_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_0_PULLUP {enabled} \
   CONFIG.PCW_MIO_0_SLEW {slow} \
   CONFIG.PCW_MIO_10_DIRECTION {inout} \
   CONFIG.PCW_MIO_10_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_10_PULLUP {enabled} \
   CONFIG.PCW_MIO_10_SLEW {slow} \
   CONFIG.PCW_MIO_11_DIRECTION {inout} \
   CONFIG.PCW_MIO_11_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_11_PULLUP {enabled} \
   CONFIG.PCW_MIO_11_SLEW {slow} \
   CONFIG.PCW_MIO_12_DIRECTION {inout} \
   CONFIG.PCW_MIO_12_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_12_PULLUP {enabled} \
   CONFIG.PCW_MIO_12_SLEW {slow} \
   CONFIG.PCW_MIO_13_DIRECTION {inout} \
   CONFIG.PCW_MIO_13_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_13_PULLUP {enabled} \
   CONFIG.PCW_MIO_13_SLEW {slow} \
   CONFIG.PCW_MIO_14_DIRECTION {inout} \
   CONFIG.PCW_MIO_14_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_14_PULLUP {enabled} \
   CONFIG.PCW_MIO_14_SLEW {slow} \
   CONFIG.PCW_MIO_15_DIRECTION {inout} \
   CONFIG.PCW_MIO_15_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_15_PULLUP {enabled} \
   CONFIG.PCW_MIO_15_SLEW {slow} \
   CONFIG.PCW_MIO_1_DIRECTION {out} \
   CONFIG.PCW_MIO_1_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_1_PULLUP {enabled} \
   CONFIG.PCW_MIO_1_SLEW {slow} \
   CONFIG.PCW_MIO_28_DIRECTION {inout} \
   CONFIG.PCW_MIO_28_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_28_PULLUP {enabled} \
   CONFIG.PCW_MIO_28_SLEW {slow} \
   CONFIG.PCW_MIO_29_DIRECTION {in} \
   CONFIG.PCW_MIO_29_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_29_PULLUP {enabled} \
   CONFIG.PCW_MIO_29_SLEW {slow} \
   CONFIG.PCW_MIO_2_DIRECTION {inout} \
   CONFIG.PCW_MIO_2_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_2_PULLUP {disabled} \
   CONFIG.PCW_MIO_2_SLEW {slow} \
   CONFIG.PCW_MIO_30_DIRECTION {out} \
   CONFIG.PCW_MIO_30_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_30_PULLUP {enabled} \
   CONFIG.PCW_MIO_30_SLEW {slow} \
   CONFIG.PCW_MIO_31_DIRECTION {in} \
   CONFIG.PCW_MIO_31_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_31_PULLUP {enabled} \
   CONFIG.PCW_MIO_31_SLEW {slow} \
   CONFIG.PCW_MIO_32_DIRECTION {inout} \
   CONFIG.PCW_MIO_32_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_32_PULLUP {enabled} \
   CONFIG.PCW_MIO_32_SLEW {slow} \
   CONFIG.PCW_MIO_33_DIRECTION {inout} \
   CONFIG.PCW_MIO_33_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_33_PULLUP {enabled} \
   CONFIG.PCW_MIO_33_SLEW {slow} \
   CONFIG.PCW_MIO_34_DIRECTION {inout} \
   CONFIG.PCW_MIO_34_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_34_PULLUP {enabled} \
   CONFIG.PCW_MIO_34_SLEW {slow} \
   CONFIG.PCW_MIO_35_DIRECTION {inout} \
   CONFIG.PCW_MIO_35_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_35_PULLUP {enabled} \
   CONFIG.PCW_MIO_35_SLEW {slow} \
   CONFIG.PCW_MIO_36_DIRECTION {in} \
   CONFIG.PCW_MIO_36_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_36_PULLUP {enabled} \
   CONFIG.PCW_MIO_36_SLEW {slow} \
   CONFIG.PCW_MIO_37_DIRECTION {inout} \
   CONFIG.PCW_MIO_37_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_37_PULLUP {enabled} \
   CONFIG.PCW_MIO_37_SLEW {slow} \
   CONFIG.PCW_MIO_38_DIRECTION {inout} \
   CONFIG.PCW_MIO_38_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_38_PULLUP {enabled} \
   CONFIG.PCW_MIO_38_SLEW {slow} \
   CONFIG.PCW_MIO_39_DIRECTION {inout} \
   CONFIG.PCW_MIO_39_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_39_PULLUP {enabled} \
   CONFIG.PCW_MIO_39_SLEW {slow} \
   CONFIG.PCW_MIO_3_DIRECTION {inout} \
   CONFIG.PCW_MIO_3_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_3_PULLUP {disabled} \
   CONFIG.PCW_MIO_3_SLEW {slow} \
   CONFIG.PCW_MIO_48_DIRECTION {out} \
   CONFIG.PCW_MIO_48_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_48_PULLUP {enabled} \
   CONFIG.PCW_MIO_48_SLEW {slow} \
   CONFIG.PCW_MIO_49_DIRECTION {in} \
   CONFIG.PCW_MIO_49_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_49_PULLUP {enabled} \
   CONFIG.PCW_MIO_49_SLEW {slow} \
   CONFIG.PCW_MIO_4_DIRECTION {inout} \
   CONFIG.PCW_MIO_4_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_4_PULLUP {disabled} \
   CONFIG.PCW_MIO_4_SLEW {slow} \
   CONFIG.PCW_MIO_52_DIRECTION {inout} \
   CONFIG.PCW_MIO_52_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_52_PULLUP {enabled} \
   CONFIG.PCW_MIO_52_SLEW {slow} \
   CONFIG.PCW_MIO_53_DIRECTION {inout} \
   CONFIG.PCW_MIO_53_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_53_PULLUP {enabled} \
   CONFIG.PCW_MIO_53_SLEW {slow} \
   CONFIG.PCW_MIO_5_DIRECTION {inout} \
   CONFIG.PCW_MIO_5_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_5_PULLUP {disabled} \
   CONFIG.PCW_MIO_5_SLEW {slow} \
   CONFIG.PCW_MIO_6_DIRECTION {out} \
   CONFIG.PCW_MIO_6_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_6_PULLUP {disabled} \
   CONFIG.PCW_MIO_6_SLEW {slow} \
   CONFIG.PCW_MIO_7_DIRECTION {out} \
   CONFIG.PCW_MIO_7_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_7_PULLUP {disabled} \
   CONFIG.PCW_MIO_7_SLEW {slow} \
   CONFIG.PCW_MIO_8_DIRECTION {out} \
   CONFIG.PCW_MIO_8_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_8_PULLUP {disabled} \
   CONFIG.PCW_MIO_8_SLEW {slow} \
   CONFIG.PCW_MIO_9_DIRECTION {inout} \
   CONFIG.PCW_MIO_9_IOTYPE {LVCMOS 3.3V} \
   CONFIG.PCW_MIO_9_PULLUP {enabled} \
   CONFIG.PCW_MIO_9_SLEW {slow} \
   CONFIG.PCW_MIO_PRIMITIVE {32} \
   CONFIG.PCW_MIO_TREE_PERIPHERALS {GPIO#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#Quad SPI Flash#USB Reset#Quad SPI Flash#GPIO#SD 1#SD 1#SD 1#SD 1#SD 1#SD 1#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#USB 0#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#UART 1#UART 1#Unbonded#Unbonded#GPIO#GPIO} \
   CONFIG.PCW_MIO_TREE_SIGNALS {gpio[0]#qspi0_ss_b#qspi0_io[0]#qspi0_io[1]#qspi0_io[2]#qspi0_io[3]/HOLD_B#qspi0_sclk#reset#qspi_fbclk#gpio[9]#data[0]#cmd#clk#data[1]#data[2]#data[3]#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#data[4]#dir#stp#nxt#data[0]#data[1]#data[2]#data[3]#clk#data[5]#data[6]#data[7]#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#Unbonded#tx#rx#Unbonded#Unbonded#gpio[52]#gpio[53]} \
   CONFIG.PCW_M_AXI_GP0_ENABLE_STATIC_REMAP {0} \
   CONFIG.PCW_M_AXI_GP0_ID_WIDTH {12} \
   CONFIG.PCW_M_AXI_GP0_SUPPORT_NARROW_BURST {0} \
   CONFIG.PCW_M_AXI_GP0_THREAD_ID_WIDTH {12} \
   CONFIG.PCW_M_AXI_GP1_ENABLE_STATIC_REMAP {0} \
   CONFIG.PCW_M_AXI_GP1_ID_WIDTH {12} \
   CONFIG.PCW_M_AXI_GP1_SUPPORT_NARROW_BURST {0} \
   CONFIG.PCW_M_AXI_GP1_THREAD_ID_WIDTH {12} \
   CONFIG.PCW_NAND_CYCLES_T_AR {1} \
   CONFIG.PCW_NAND_CYCLES_T_CLR {1} \
   CONFIG.PCW_NAND_CYCLES_T_RC {11} \
   CONFIG.PCW_NAND_CYCLES_T_REA {1} \
   CONFIG.PCW_NAND_CYCLES_T_RR {1} \
   CONFIG.PCW_NAND_CYCLES_T_WC {11} \
   CONFIG.PCW_NAND_CYCLES_T_WP {1} \
   CONFIG.PCW_NAND_GRP_D8_ENABLE {0} \
   CONFIG.PCW_NAND_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_NOR_CS0_T_CEOE {1} \
   CONFIG.PCW_NOR_CS0_T_PC {1} \
   CONFIG.PCW_NOR_CS0_T_RC {11} \
   CONFIG.PCW_NOR_CS0_T_TR {1} \
   CONFIG.PCW_NOR_CS0_T_WC {11} \
   CONFIG.PCW_NOR_CS0_T_WP {1} \
   CONFIG.PCW_NOR_CS0_WE_TIME {0} \
   CONFIG.PCW_NOR_CS1_T_CEOE {1} \
   CONFIG.PCW_NOR_CS1_T_PC {1} \
   CONFIG.PCW_NOR_CS1_T_RC {11} \
   CONFIG.PCW_NOR_CS1_T_TR {1} \
   CONFIG.PCW_NOR_CS1_T_WC {11} \
   CONFIG.PCW_NOR_CS1_T_WP {1} \
   CONFIG.PCW_NOR_CS1_WE_TIME {0} \
   CONFIG.PCW_NOR_GRP_A25_ENABLE {0} \
   CONFIG.PCW_NOR_GRP_CS0_ENABLE {0} \
   CONFIG.PCW_NOR_GRP_CS1_ENABLE {0} \
   CONFIG.PCW_NOR_GRP_SRAM_CS0_ENABLE {0} \
   CONFIG.PCW_NOR_GRP_SRAM_CS1_ENABLE {0} \
   CONFIG.PCW_NOR_GRP_SRAM_INT_ENABLE {0} \
   CONFIG.PCW_NOR_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_NOR_SRAM_CS0_T_CEOE {1} \
   CONFIG.PCW_NOR_SRAM_CS0_T_PC {1} \
   CONFIG.PCW_NOR_SRAM_CS0_T_RC {11} \
   CONFIG.PCW_NOR_SRAM_CS0_T_TR {1} \
   CONFIG.PCW_NOR_SRAM_CS0_T_WC {11} \
   CONFIG.PCW_NOR_SRAM_CS0_T_WP {1} \
   CONFIG.PCW_NOR_SRAM_CS0_WE_TIME {0} \
   CONFIG.PCW_NOR_SRAM_CS1_T_CEOE {1} \
   CONFIG.PCW_NOR_SRAM_CS1_T_PC {1} \
   CONFIG.PCW_NOR_SRAM_CS1_T_RC {11} \
   CONFIG.PCW_NOR_SRAM_CS1_T_TR {1} \
   CONFIG.PCW_NOR_SRAM_CS1_T_WC {11} \
   CONFIG.PCW_NOR_SRAM_CS1_T_WP {1} \
   CONFIG.PCW_NOR_SRAM_CS1_WE_TIME {0} \
   CONFIG.PCW_OVERRIDE_BASIC_CLOCK {0} \
   CONFIG.PCW_P2F_CAN0_INTR {0} \
   CONFIG.PCW_P2F_CAN1_INTR {0} \
   CONFIG.PCW_P2F_CTI_INTR {0} \
   CONFIG.PCW_P2F_DMAC0_INTR {0} \
   CONFIG.PCW_P2F_DMAC1_INTR {0} \
   CONFIG.PCW_P2F_DMAC2_INTR {0} \
   CONFIG.PCW_P2F_DMAC3_INTR {0} \
   CONFIG.PCW_P2F_DMAC4_INTR {0} \
   CONFIG.PCW_P2F_DMAC5_INTR {0} \
   CONFIG.PCW_P2F_DMAC6_INTR {0} \
   CONFIG.PCW_P2F_DMAC7_INTR {0} \
   CONFIG.PCW_P2F_DMAC_ABORT_INTR {0} \
   CONFIG.PCW_P2F_ENET0_INTR {0} \
   CONFIG.PCW_P2F_ENET1_INTR {0} \
   CONFIG.PCW_P2F_GPIO_INTR {0} \
   CONFIG.PCW_P2F_I2C0_INTR {0} \
   CONFIG.PCW_P2F_I2C1_INTR {0} \
   CONFIG.PCW_P2F_QSPI_INTR {0} \
   CONFIG.PCW_P2F_SDIO0_INTR {0} \
   CONFIG.PCW_P2F_SDIO1_INTR {0} \
   CONFIG.PCW_P2F_SMC_INTR {0} \
   CONFIG.PCW_P2F_SPI0_INTR {0} \
   CONFIG.PCW_P2F_SPI1_INTR {0} \
   CONFIG.PCW_P2F_UART0_INTR {0} \
   CONFIG.PCW_P2F_UART1_INTR {0} \
   CONFIG.PCW_P2F_USB0_INTR {0} \
   CONFIG.PCW_P2F_USB1_INTR {0} \
   CONFIG.PCW_PACKAGE_DDR_BOARD_DELAY0 {0.468} \
   CONFIG.PCW_PACKAGE_DDR_BOARD_DELAY1 {0.475} \
   CONFIG.PCW_PACKAGE_DDR_BOARD_DELAY2 {0.510} \
   CONFIG.PCW_PACKAGE_DDR_BOARD_DELAY3 {0.625} \
   CONFIG.PCW_PACKAGE_DDR_DQS_TO_CLK_DELAY_0 {-0.034} \
   CONFIG.PCW_PACKAGE_DDR_DQS_TO_CLK_DELAY_1 {-0.025} \
   CONFIG.PCW_PACKAGE_DDR_DQS_TO_CLK_DELAY_2 {-0.050} \
   CONFIG.PCW_PACKAGE_DDR_DQS_TO_CLK_DELAY_3 {-0.230} \
   CONFIG.PCW_PACKAGE_NAME {clg225} \
   CONFIG.PCW_PCAP_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_PCAP_PERIPHERAL_DIVISOR0 {7} \
   CONFIG.PCW_PCAP_PERIPHERAL_FREQMHZ {200} \
   CONFIG.PCW_PERIPHERAL_BOARD_PRESET {part0} \
   CONFIG.PCW_PJTAG_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_PLL_BYPASSMODE_ENABLE {0} \
   CONFIG.PCW_PRESET_BANK0_VOLTAGE {LVCMOS 3.3V} \
   CONFIG.PCW_PRESET_BANK1_VOLTAGE {LVCMOS 3.3V} \
   CONFIG.PCW_PS7_SI_REV {PRODUCTION} \
   CONFIG.PCW_QSPI_GRP_FBCLK_ENABLE {1} \
   CONFIG.PCW_QSPI_GRP_FBCLK_IO {MIO 8} \
   CONFIG.PCW_QSPI_GRP_IO1_ENABLE {0} \
   CONFIG.PCW_QSPI_GRP_SINGLE_SS_ENABLE {1} \
   CONFIG.PCW_QSPI_GRP_SINGLE_SS_IO {MIO 1 .. 6} \
   CONFIG.PCW_QSPI_GRP_SS1_ENABLE {0} \
   CONFIG.PCW_QSPI_INTERNAL_HIGHADDRESS {0xFCFFFFFF} \
   CONFIG.PCW_QSPI_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_QSPI_PERIPHERAL_DIVISOR0 {7} \
   CONFIG.PCW_QSPI_PERIPHERAL_ENABLE {1} \
   CONFIG.PCW_QSPI_PERIPHERAL_FREQMHZ {200} \
   CONFIG.PCW_QSPI_QSPI_IO {MIO 1 .. 6} \
   CONFIG.PCW_SD0_GRP_CD_ENABLE {1} \
   CONFIG.PCW_SD0_GRP_CD_IO {EMIO} \
   CONFIG.PCW_SD0_GRP_POW_ENABLE {0} \
   CONFIG.PCW_SD0_GRP_WP_ENABLE {1} \
   CONFIG.PCW_SD0_GRP_WP_IO {EMIO} \
   CONFIG.PCW_SD0_PERIPHERAL_ENABLE {1} \
   CONFIG.PCW_SD0_SD0_IO {EMIO} \
   CONFIG.PCW_SD1_GRP_CD_ENABLE {0} \
   CONFIG.PCW_SD1_GRP_POW_ENABLE {0} \
   CONFIG.PCW_SD1_GRP_WP_ENABLE {0} \
   CONFIG.PCW_SD1_PERIPHERAL_ENABLE {1} \
   CONFIG.PCW_SD1_SD1_IO {MIO 10 .. 15} \
   CONFIG.PCW_SDIO0_BASEADDR {0xE0100000} \
   CONFIG.PCW_SDIO0_HIGHADDR {0xE0100FFF} \
   CONFIG.PCW_SDIO1_BASEADDR {0xE0101000} \
   CONFIG.PCW_SDIO1_HIGHADDR {0xE0101FFF} \
   CONFIG.PCW_SDIO_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_SDIO_PERIPHERAL_DIVISOR0 {56} \
   CONFIG.PCW_SDIO_PERIPHERAL_FREQMHZ {25} \
   CONFIG.PCW_SDIO_PERIPHERAL_VALID {1} \
   CONFIG.PCW_SINGLE_QSPI_DATA_MODE {x4} \
   CONFIG.PCW_SMC_CYCLE_T0 {NA} \
   CONFIG.PCW_SMC_CYCLE_T1 {NA} \
   CONFIG.PCW_SMC_CYCLE_T2 {NA} \
   CONFIG.PCW_SMC_CYCLE_T3 {NA} \
   CONFIG.PCW_SMC_CYCLE_T4 {NA} \
   CONFIG.PCW_SMC_CYCLE_T5 {NA} \
   CONFIG.PCW_SMC_CYCLE_T6 {NA} \
   CONFIG.PCW_SMC_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_SMC_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_SMC_PERIPHERAL_FREQMHZ {100} \
   CONFIG.PCW_SMC_PERIPHERAL_VALID {0} \
   CONFIG.PCW_SPI0_BASEADDR {0xE0006000} \
   CONFIG.PCW_SPI0_GRP_SS0_ENABLE {0} \
   CONFIG.PCW_SPI0_GRP_SS1_ENABLE {0} \
   CONFIG.PCW_SPI0_GRP_SS2_ENABLE {0} \
   CONFIG.PCW_SPI0_HIGHADDR {0xE0006FFF} \
   CONFIG.PCW_SPI0_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_SPI1_BASEADDR {0xE0007000} \
   CONFIG.PCW_SPI1_GRP_SS0_ENABLE {0} \
   CONFIG.PCW_SPI1_GRP_SS1_ENABLE {0} \
   CONFIG.PCW_SPI1_GRP_SS2_ENABLE {0} \
   CONFIG.PCW_SPI1_HIGHADDR {0xE0007FFF} \
   CONFIG.PCW_SPI1_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_SPI_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_SPI_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_SPI_PERIPHERAL_FREQMHZ {166.666666} \
   CONFIG.PCW_SPI_PERIPHERAL_VALID {0} \
   CONFIG.PCW_S_AXI_ACP_ARUSER_VAL {31} \
   CONFIG.PCW_S_AXI_ACP_AWUSER_VAL {31} \
   CONFIG.PCW_S_AXI_ACP_ID_WIDTH {3} \
   CONFIG.PCW_S_AXI_GP0_ID_WIDTH {6} \
   CONFIG.PCW_S_AXI_GP1_ID_WIDTH {6} \
   CONFIG.PCW_S_AXI_HP0_DATA_WIDTH {64} \
   CONFIG.PCW_S_AXI_HP0_ID_WIDTH {6} \
   CONFIG.PCW_S_AXI_HP1_DATA_WIDTH {64} \
   CONFIG.PCW_S_AXI_HP1_ID_WIDTH {6} \
   CONFIG.PCW_S_AXI_HP2_DATA_WIDTH {64} \
   CONFIG.PCW_S_AXI_HP2_ID_WIDTH {6} \
   CONFIG.PCW_S_AXI_HP3_DATA_WIDTH {64} \
   CONFIG.PCW_S_AXI_HP3_ID_WIDTH {6} \
   CONFIG.PCW_TPIU_PERIPHERAL_CLKSRC {External} \
   CONFIG.PCW_TPIU_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TPIU_PERIPHERAL_FREQMHZ {200} \
   CONFIG.PCW_TRACE_BUFFER_CLOCK_DELAY {12} \
   CONFIG.PCW_TRACE_BUFFER_FIFO_SIZE {128} \
   CONFIG.PCW_TRACE_GRP_16BIT_ENABLE {0} \
   CONFIG.PCW_TRACE_GRP_2BIT_ENABLE {0} \
   CONFIG.PCW_TRACE_GRP_32BIT_ENABLE {0} \
   CONFIG.PCW_TRACE_GRP_4BIT_ENABLE {0} \
   CONFIG.PCW_TRACE_GRP_8BIT_ENABLE {0} \
   CONFIG.PCW_TRACE_INTERNAL_WIDTH {2} \
   CONFIG.PCW_TRACE_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_TRACE_PIPELINE_WIDTH {8} \
   CONFIG.PCW_TTC0_BASEADDR {0xE0104000} \
   CONFIG.PCW_TTC0_CLK0_PERIPHERAL_CLKSRC {CPU_1X} \
   CONFIG.PCW_TTC0_CLK0_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TTC0_CLK0_PERIPHERAL_FREQMHZ {133.333333} \
   CONFIG.PCW_TTC0_CLK1_PERIPHERAL_CLKSRC {CPU_1X} \
   CONFIG.PCW_TTC0_CLK1_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TTC0_CLK1_PERIPHERAL_FREQMHZ {133.333333} \
   CONFIG.PCW_TTC0_CLK2_PERIPHERAL_CLKSRC {CPU_1X} \
   CONFIG.PCW_TTC0_CLK2_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TTC0_CLK2_PERIPHERAL_FREQMHZ {133.333333} \
   CONFIG.PCW_TTC0_HIGHADDR {0xE0104fff} \
   CONFIG.PCW_TTC0_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_TTC1_BASEADDR {0xE0105000} \
   CONFIG.PCW_TTC1_CLK0_PERIPHERAL_CLKSRC {CPU_1X} \
   CONFIG.PCW_TTC1_CLK0_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TTC1_CLK0_PERIPHERAL_FREQMHZ {133.333333} \
   CONFIG.PCW_TTC1_CLK1_PERIPHERAL_CLKSRC {CPU_1X} \
   CONFIG.PCW_TTC1_CLK1_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TTC1_CLK1_PERIPHERAL_FREQMHZ {133.333333} \
   CONFIG.PCW_TTC1_CLK2_PERIPHERAL_CLKSRC {CPU_1X} \
   CONFIG.PCW_TTC1_CLK2_PERIPHERAL_DIVISOR0 {1} \
   CONFIG.PCW_TTC1_CLK2_PERIPHERAL_FREQMHZ {133.333333} \
   CONFIG.PCW_TTC1_HIGHADDR {0xE0105fff} \
   CONFIG.PCW_TTC1_PERIPHERAL_ENABLE {0} \
   CONFIG.PCW_TTC_PERIPHERAL_FREQMHZ {50} \
   CONFIG.PCW_UART0_BASEADDR {0xE0000000} \
   CONFIG.PCW_UART0_BAUD_RATE {115200} \
   CONFIG.PCW_UART0_GRP_FULL_ENABLE {1} \
   CONFIG.PCW_UART0_GRP_FULL_IO {EMIO} \
   CONFIG.PCW_UART0_HIGHADDR {0xE0000FFF} \
   CONFIG.PCW_UART0_PERIPHERAL_ENABLE {1} \
   CONFIG.PCW_UART0_UART0_IO {EMIO} \
   CONFIG.PCW_UART1_BASEADDR {0xE0001000} \
   CONFIG.PCW_UART1_BAUD_RATE {115200} \
   CONFIG.PCW_UART1_GRP_FULL_ENABLE {0} \
   CONFIG.PCW_UART1_HIGHADDR {0xE0001FFF} \
   CONFIG.PCW_UART1_PERIPHERAL_ENABLE {1} \
   CONFIG.PCW_UART1_UART1_IO {MIO 48 .. 49} \
   CONFIG.PCW_UART_PERIPHERAL_CLKSRC {IO PLL} \
   CONFIG.PCW_UART_PERIPHERAL_DIVISOR0 {14} \
   CONFIG.PCW_UART_PERIPHERAL_FREQMHZ {100} \
   CONFIG.PCW_UART_PERIPHERAL_VALID {1} \
   CONFIG.PCW_UIPARAM_ACT_DDR_FREQ_MHZ {533.333374} \
   CONFIG.PCW_UIPARAM_DDR_ADV_ENABLE {0} \
   CONFIG.PCW_UIPARAM_DDR_AL {0} \
   CONFIG.PCW_UIPARAM_DDR_BANK_ADDR_COUNT {3} \
   CONFIG.PCW_UIPARAM_DDR_BL {8} \
   CONFIG.PCW_UIPARAM_DDR_BOARD_DELAY0 {0.234} \
   CONFIG.PCW_UIPARAM_DDR_BOARD_DELAY1 {0.234} \
   CONFIG.PCW_UIPARAM_DDR_BOARD_DELAY2 {0.100} \
   CONFIG.PCW_UIPARAM_DDR_BOARD_DELAY3 {0.100} \
   CONFIG.PCW_UIPARAM_DDR_BUS_WIDTH {16 Bit} \
   CONFIG.PCW_UIPARAM_DDR_CL {7} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_0_LENGTH_MM {0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_0_PACKAGE_LENGTH {470.0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_0_PROPOGATION_DELAY {160} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_1_LENGTH_MM {0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_1_PACKAGE_LENGTH {470.0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_1_PROPOGATION_DELAY {160} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_2_LENGTH_MM {0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_2_PACKAGE_LENGTH {470.0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_2_PROPOGATION_DELAY {160} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_3_LENGTH_MM {0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_3_PACKAGE_LENGTH {470.0} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_3_PROPOGATION_DELAY {160} \
   CONFIG.PCW_UIPARAM_DDR_CLOCK_STOP_EN {0} \
   CONFIG.PCW_UIPARAM_DDR_COL_ADDR_COUNT {10} \
   CONFIG.PCW_UIPARAM_DDR_CWL {6} \
   CONFIG.PCW_UIPARAM_DDR_DEVICE_CAPACITY {4096 MBits} \
   CONFIG.PCW_UIPARAM_DDR_DQS_0_LENGTH_MM {0} \
...

This file has been truncated, please download it to see its full contents.

address_Generator.vhd

VHDL
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;

entity Address_Generator is
    Port ( 	CLK25,enable : in  STD_LOGIC;								-- horloge de 25 MHz et signal d'activation respectivement
            rez_160x120  : IN std_logic;
            rez_320x240  : IN std_logic;
            vsync        : in  STD_LOGIC;
			address 		 : out STD_LOGIC_VECTOR (16 downto 0));	-- adresse généré
end Address_Generator;

architecture Behavioral of Address_Generator is
   signal val: STD_LOGIC_VECTOR(address'range):= (others => '0');		-- signal intermidiaire
begin
	address <= val;																		-- adresse généré

	process(CLK25)
		begin
         if rising_edge(CLK25) then
            if (enable='1') then													-- si enable = 0 on arrete la génération d'adresses
               if rez_160x120 = '1' then
                  if (val < 160*120) then										-- si l'espace mémoire est balayé complétement
                     val <= val + 1 ;
                  end if;
               elsif rez_320x240 = '1' then
                  if (val < 320*240) then										-- si l'espace mémoire est balayé complétement
                     val <= val + 1 ;
                  end if;
               else
                  if (val < 640*480) then										-- si l'espace mémoire est balayé complétement
                     val <= val + 1 ;
                  end if;
               end if;
				end if;
            if vsync = '0' then
               val <= (others => '0');
            end if;
			end if;
		end process;
end Behavioral;

VGA

VHDL
----------------------------------------------------------------------------------
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;



entity VGA is
    Port ( CLK25 : in  STD_LOGIC;									-- Horloge d'entrée de 25 MHz
			  --clkout : out  STD_LOGIC;					-- Horloge de sortie vers le ADV7123 et l'écran TFT
           rez_160x120 : IN std_logic;
           rez_320x240 : IN std_logic;
           Hsync,Vsync : out  STD_LOGIC;						-- les deux signaux de synchronisation pour l'écran VGA
			  --Nblank : out  STD_LOGIC;								-- signal de commande du convertisseur N/A ADV7123
           activeArea : out  STD_LOGIC
			  --Nsync : out  STD_LOGIC
			  );	-- signaux de synchronisation et commande de l'écran TFT
end VGA;

architecture Behavioral of VGA is
signal Hcnt:STD_LOGIC_VECTOR(9 downto 0):="0000000000";		-- pour le comptage des colonnes
signal Vcnt:STD_LOGIC_VECTOR(9 downto 0):="1000001000";		-- pour le comptage des lignes
signal video:STD_LOGIC;
constant HM: integer :=799;	--la taille maximale considéré 800 (horizontal)
constant HD: integer :=640;	--la taille de l'écran (horizontal)
constant HF: integer :=16;		--front porch
constant HB: integer :=48;		--back porch
constant HR: integer :=96;		--sync time
constant VM: integer :=524;	--la taille maximale considéré 525 (vertical)
constant VD: integer :=480;	--la taille de l'écran (vertical)
constant VF: integer :=10;		--front porch
constant VB: integer :=33;		--back porch
constant VR: integer :=2;		--retrace

begin

-- initialisation d'un compteur de 0 à 799 (800 pixel par ligne):
-- à chaque front d'horloge en incrémente le compteur de colonnes
-- c-a-d du 0 à 799.
	process(CLK25)
		begin
			if (CLK25'event and CLK25='1') then
				if (Hcnt = HM) then
					Hcnt <= "0000000000";
               if (Vcnt= VM) then
                  Vcnt <= "0000000000";
                  activeArea <= '1';
               else
                  if rez_160x120 = '1' then
                     if vCnt < 120-1 then
                        activeArea <= '1';
                     end if;
                  elsif rez_320x240 = '1' then
                     if vCnt < 240-1 then
                        activeArea <= '1';
                     end if;
                  else
                     if vCnt < 480-1 then
                        activeArea <= '1';
                     end if;
                  end if;
                  Vcnt <= Vcnt+1;
               end if;
				else
               if rez_160x120 = '1' then
                  if hcnt = 160-1 then
                     activeArea <= '0';
                  end if;
               elsif rez_320x240 = '1' then
                  if hcnt = 320-1 then
                     activeArea <= '0';
                  end if;
               else
                  if hcnt = 640-1 then
                     activeArea <= '0';
                  end if;
               end if;
					Hcnt <= Hcnt + 1;
				end if;
			end if;
		end process;
----------------------------------------------------------------

-- génération du signal de synchronisation horizontale Hsync:
	process(CLK25)
		begin
			if (CLK25'event and CLK25='1') then
				if (Hcnt >= (HD+HF) and Hcnt <= (HD+HF+HR-1)) then   --- Hcnt >= 656 and Hcnt <= 751
					Hsync <= '0';
				else
					Hsync <= '1';
				end if;
			end if;
		end process;
----------------------------------------------------------------

-- génération du signal de synchronisation verticale Vsync:
	process(CLK25)
		begin
			if (CLK25'event and CLK25='1') then
				if (Vcnt >= (VD+VF) and Vcnt <= (VD+VF+VR-1)) then  ---Vcnt >= 490 and vcnt<= 491
					Vsync <= '0';
				else
					Vsync <= '1';
				end if;
			end if;
		end process;
----------------------------------------------------------------

-- Nblank et Nsync pour commander le covertisseur ADV7123:
--Nsync <= '1';
video <= '1' when (Hcnt < HD) and (Vcnt < VD)			-- c'est pour utiliser la résolution complète 640 x 480
	      else '0';
--Nblank <= video;
--clkout <= CLK25;


end Behavioral;
