Simple Irrigation to Plants

The project consists of turn on/off a mini pump on scheduled days, allowing the resident to leave without worrying who will wet the plants.

EasyFull instructions provided2 hours58

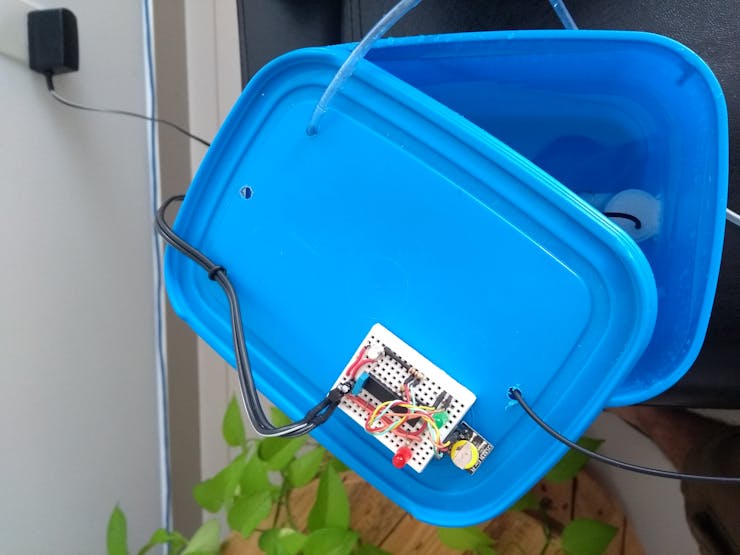

Simple Irrigation to Plants

Things used in this project

Hardware components

MSP-EXP430G2 MSP430 LaunchPad
Texas Instruments MSP-EXP430G2 MSP430 LaunchPad
×1
DS3231 for PI
×1
Breadboard (generic)
Breadboard (generic)
×1
Bipolar (BJT) Single Transistor, Audio
Bipolar (BJT) Single Transistor, Audio
×1
Resistor 221 ohm
Resistor 221 ohm
×2
Resistor 1k ohm
Resistor 1k ohm
×1
Resistor 47.5k ohm
Resistor 47.5k ohm
×1
Capacitor 100 nF
Capacitor 100 nF
×2
Capacitor 4.7 µF
Capacitor 4.7 µF
×1
LED (generic)
LED (generic)
×2
5V 4000mA Switching Power Supply
Digilent 5V 4000mA Switching Power Supply
×1

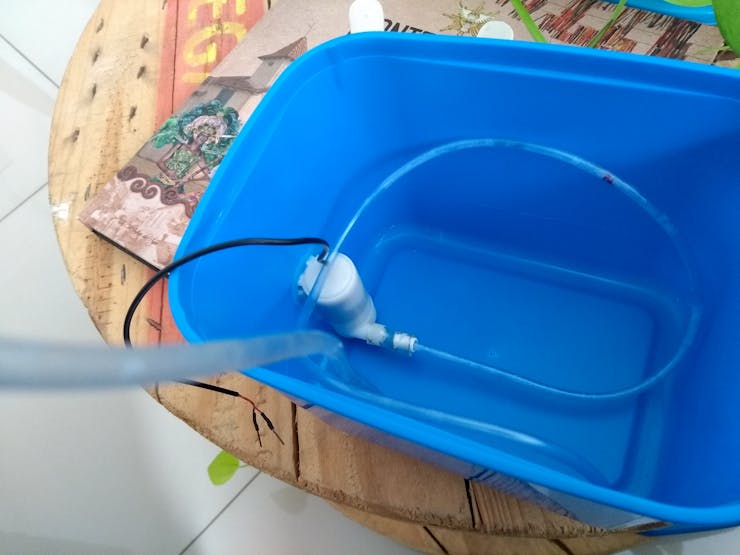

Mini Micro Submersible Motor Pump Water
×1
1N4007 – High Voltage, High Current Rated Diode
1N4007 – High Voltage, High Current Rated Diode
×1

Software apps and online services

Code Composer Studio
Texas Instruments Code Composer Studio

Story

Read more

Schematics

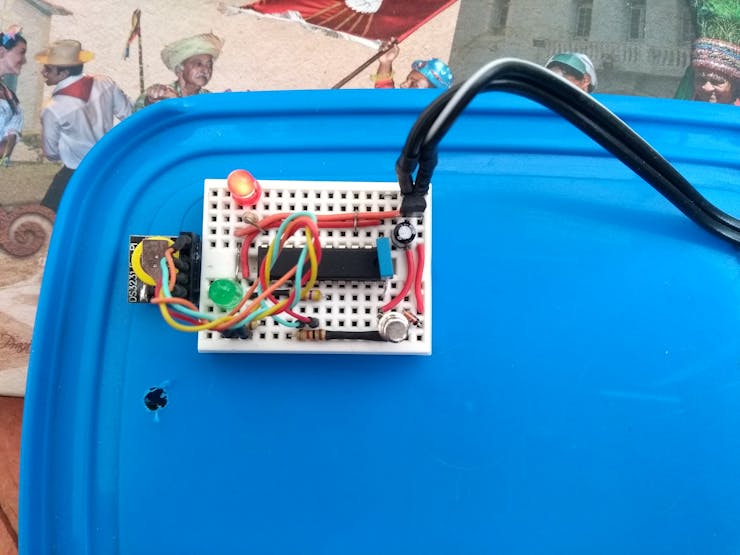

Schematic of circuit

Code

Source code of MSP430

C/C++
No preview (download only).
