Measuring Power Consumption with the Digilent OpenLogger

How much power does an everyday appliance use? How can we look at and interpret this data?

IntermediateFull instructions provided4 hours429
Measuring Power Consumption with the Digilent OpenLogger

Things used in this project

Hardware components

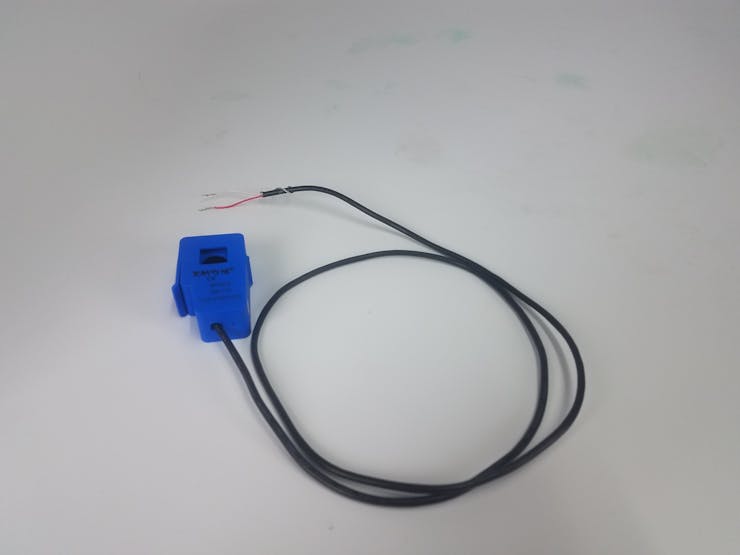

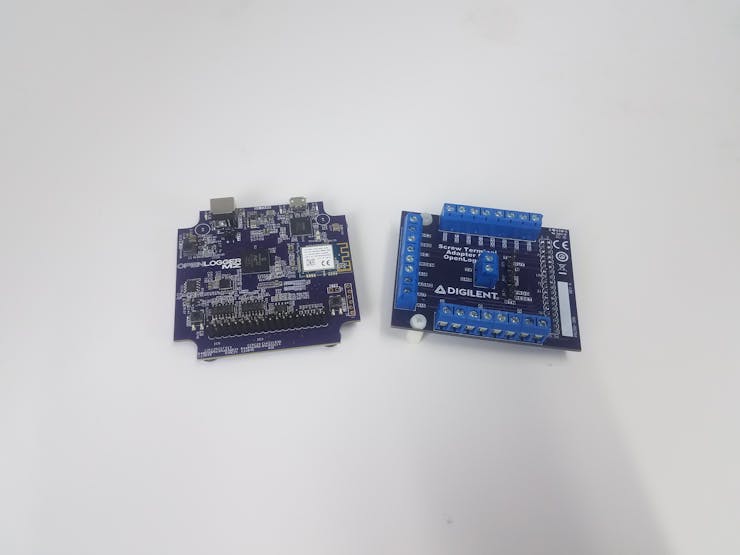

Digilent Openlogger
×1

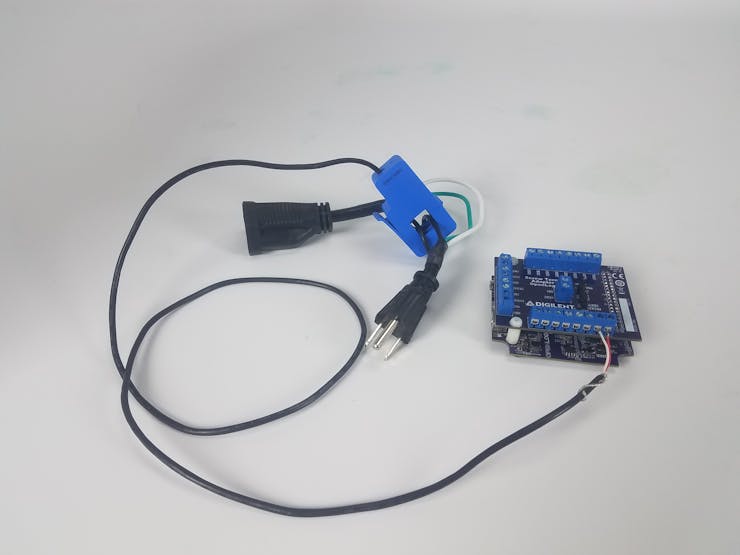

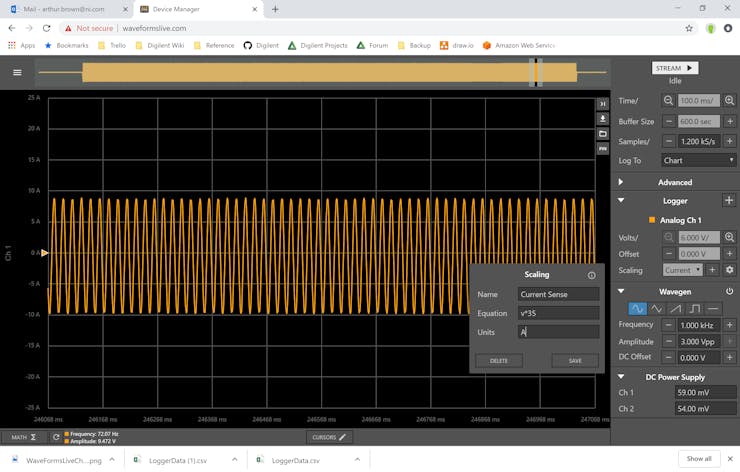

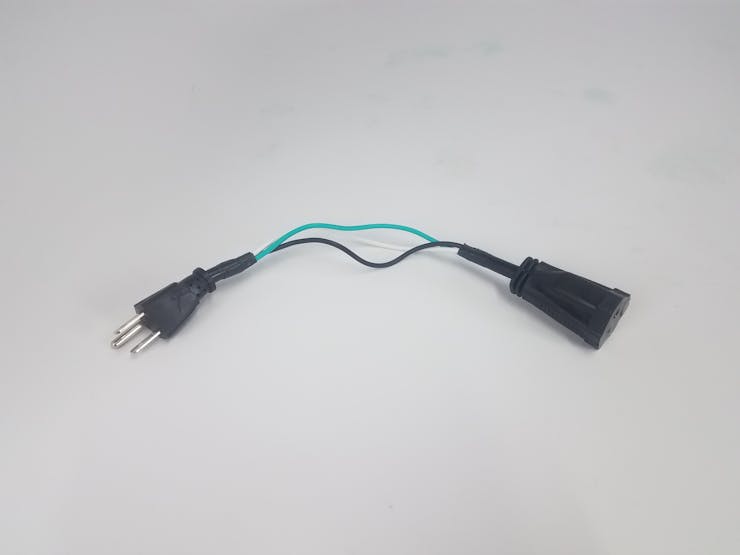

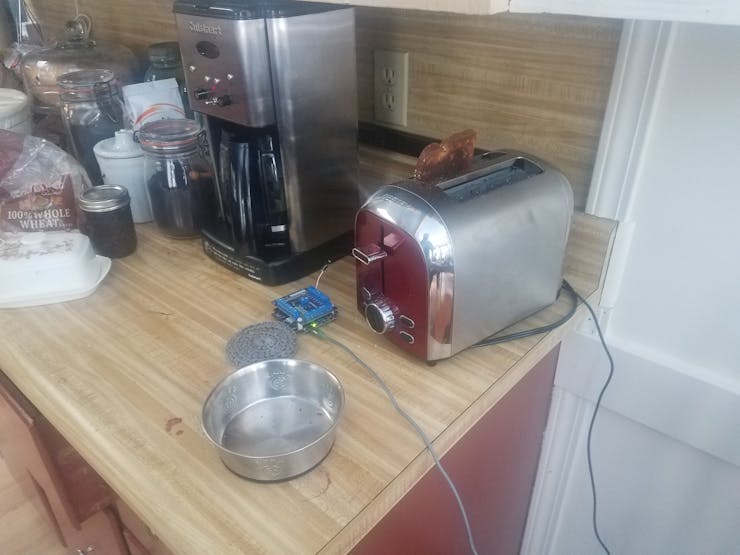

Story

Read more

Code

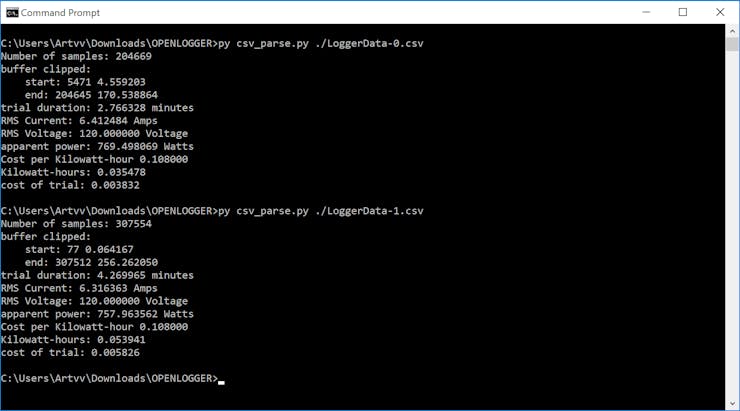

csv_parse.py

Python

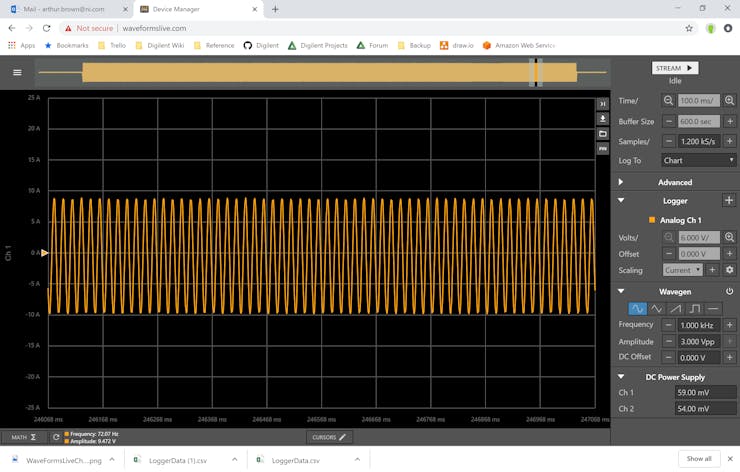

Used to calculate RMS current from a CSV file exported from Waveforms Live
from sys import argv
from math import sqrt
threshold = 0.6
filename = argv[1]#'LoggerData-0.csv'

def first(the_iterable, condition = lambda x: True):
    for idx, val in enumerate(the_iterable):
        if condition(val):
            return idx

with open(filename) as csv_file:
	s = csv_file.read()
	l = s.split('\n')
	data = []
	for row in l[1:]:
		fields = row.split(',')
		if fields != ['']:
			data.append((
				float(fields[0]),
				float(fields[1])
			))
	print('Number of samples:', len(l[1:]))
	trigger_start = first(data, lambda x: x[1] >= threshold or x[1] <= -threshold)
	data.reverse()
	trigger_end = len(data) - 1 - first(data, lambda x: x[1] >= threshold or x[1] <= -threshold)
	data.reverse()
	print('buffer clipped:')
	print('    start: %d %f' % (trigger_start, data[trigger_start][0]))
	print('    end: %d %f' % (trigger_end, data[trigger_end][0]))
	duration = data[trigger_end][0] - data[trigger_start][0]
	print('trial duration: %f minutes' % (duration / 60.0))
	i_rms = 0.0
	for idx in range(trigger_start, trigger_end):
		i_rms += data[idx][1] * data[idx][1]
	i_rms /= trigger_end - trigger_start + 1
	i_rms = sqrt(i_rms)
	v_rms = 120.0
	print('RMS Current: %f Amps' % i_rms)
	print('RMS Voltage: %f Voltage' % v_rms)
	print('apparent power: %f Watts' % (i_rms * v_rms))
	print('Cost per Kilowatt-hour %f' % 0.108) # This is the average for seattle
	kwh = (i_rms * v_rms / 1000.0) * (duration / 3600.0)
	print('Kilowatt-hours: %f' % kwh)
	print('cost of trial: %f' % (kwh * 0.108))
